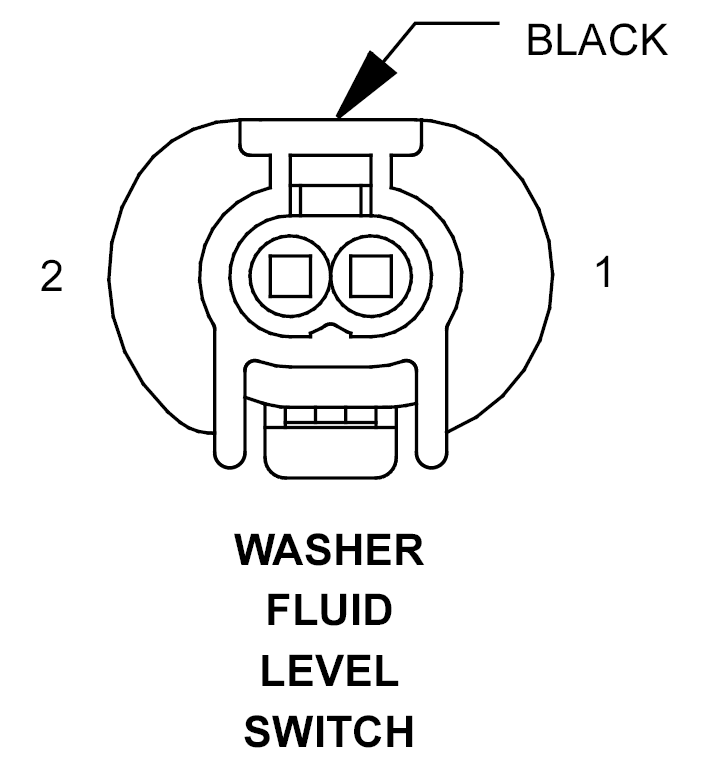

Washer Fluid Level Switch Connector End View

WASHER FLUID LEVEL SWITCH - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR	COOLANT/WASHER LEVEL RETURN
2	20BR/BL	COOLANT/WASHER LEVEL COMBINATION
