Washer Pump Motor Connector End View

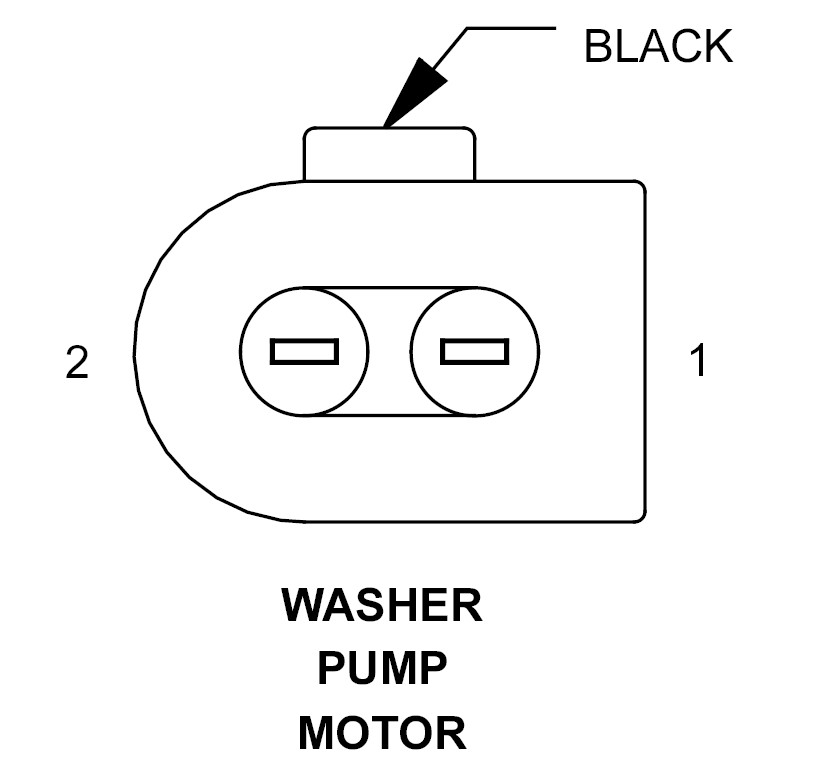

WASHER PUMP MOTOR - BLACK 2-WAY

GZH780256Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18GY WASHER PUMP MOTOR CONTROL
2 18BR GROUND
