Installation-Rear Heat Shield

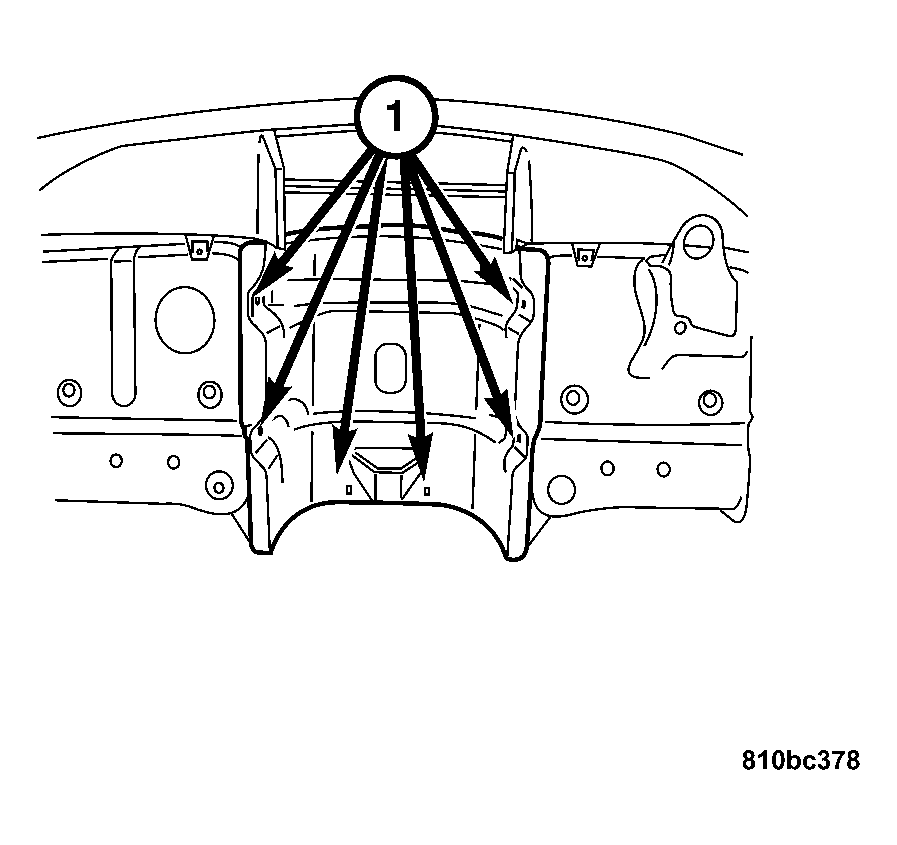

Fig 1: Removing/Installing Heat Shield Nuts & Heat Shield

Courtesy of CHRYSLER LLC

1. Install the heat shield and the nuts (1). Tighten the nuts to 10 N.m (89 in. lbs.).
2. Install the muffler. See INSTALLATION .
