Engine Mount Bracket

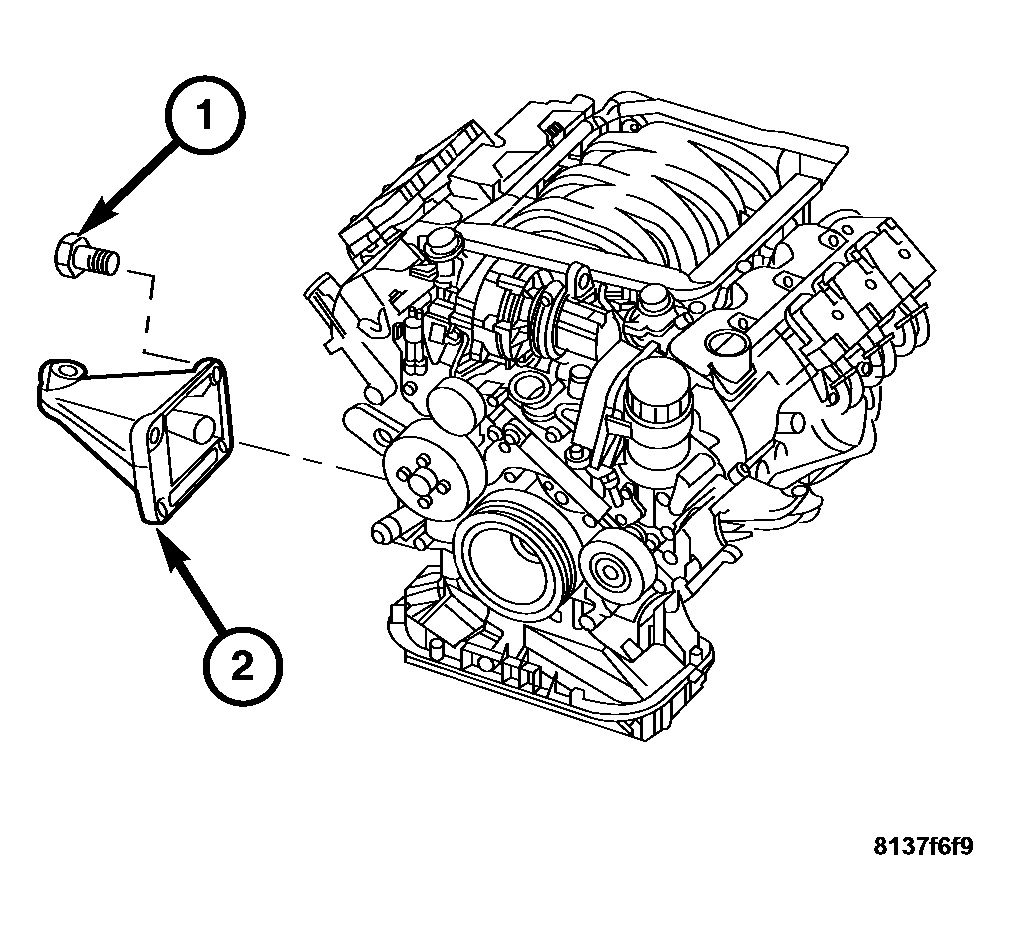

Fig 1: Removing/Installing Right Engine Mount Brackets
GC0034470Courtesy of CHRYSLER LLC
  1. Position the engine mount brackets (2) on the engine block.
  2. Install the new bolts (1). Tighten to 20 N.m (15 ft. lbs.) plus 90° clockwise.
  3. Install the engine mounts. See INSTALLATION .
