Front Engine Mount

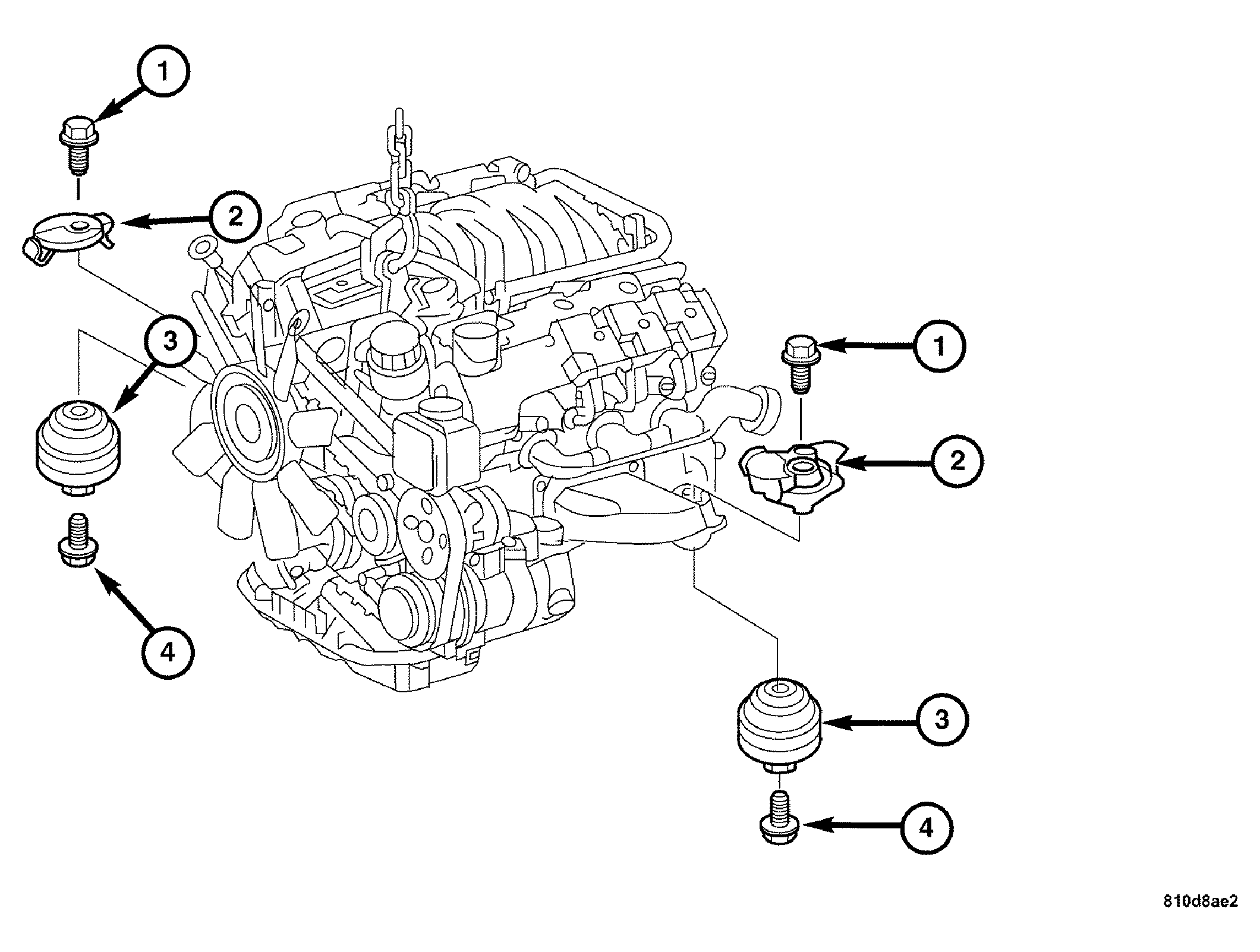

Fig 1: Removing/Installing Front Mount
GC0034471Courtesy of CHRYSLER LLC
1 - ENGINE MOUNT UPPER BOLT
2 - HEAT SHIELD
3 - ENGINE MOUNT
4 - ENGINE MOUNT LOWER BOLT
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing. See REMOVAL .
  3. Attach the engine support frame.
  4. Remove the engine mount upper bolt (1) and the heat shield (2).
    CAUTION: Do not stretch lines and hoses while lifting engine.
  5. Raise the engine slightly.
  6. Raise and support the vehicle.
    Fig 2: Removing/Installing Lower Splash Shield
    GC0032300Courtesy of CHRYSLER LLC
  7. Remove the lower splash shield screws (1) and the splash shield.
  8. Remove the engine mount lower bolt.
  9. Remove the engine mount.
