P0446-Charcoal Canister Shutoff Valve: Notes

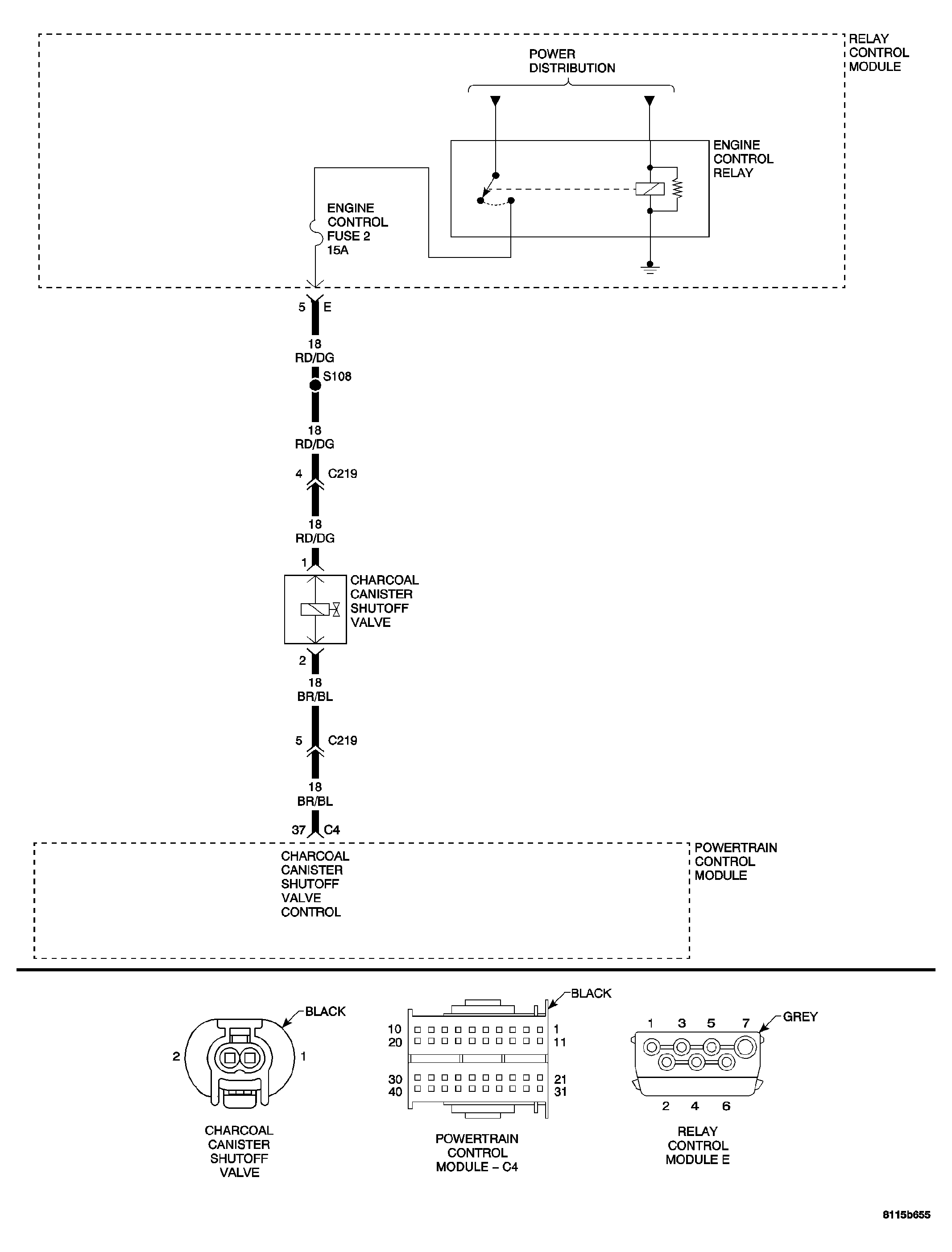

Fig 1: Charcoal Canister Shutoff Valve Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : The ignition on or engine running. Battery voltage greater than 10 volts.
2. Set Condition  : An improper voltage level has been detected on the Charcoal Canister Shutoff Valve Control circuit.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
