Vehicle Preparation
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
Position the vehicle on a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

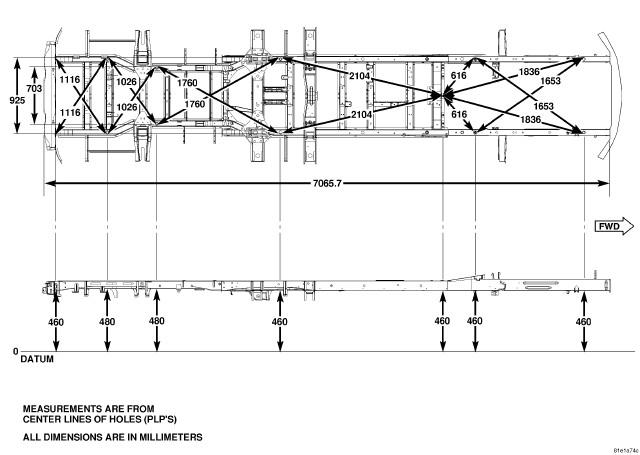

| 2500 CARGO ONLY 170 INCH WHEELBASE - EXTENDED | Fig 1 |

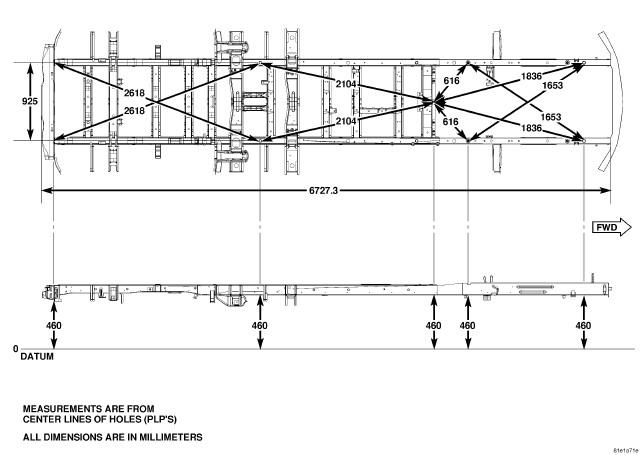

| 2500 PASSENGER/CARGO 144 INCH WHEELBASE | Fig 2 |

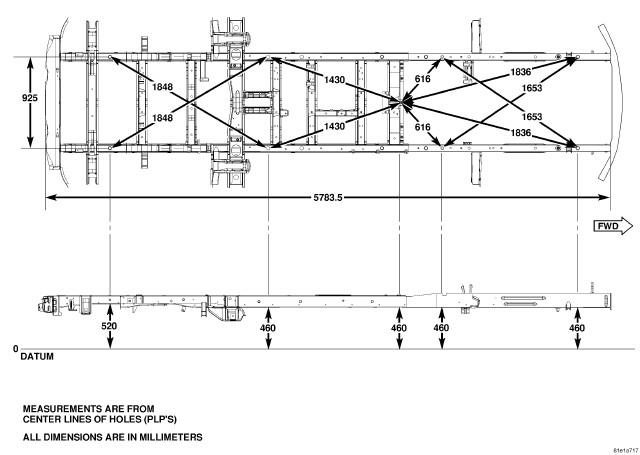

| 2500 PASSENGER/CARGO 170 INCH WHEELBASE | Fig 3 |

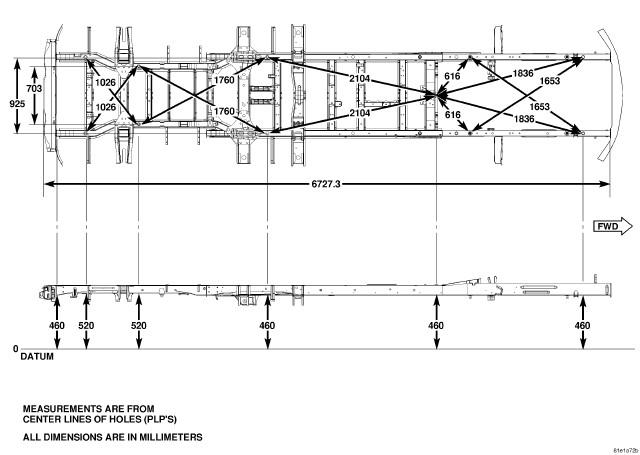

| 3500 CARGO ONLY 170 INCH WHEELBASE | Fig 4 |

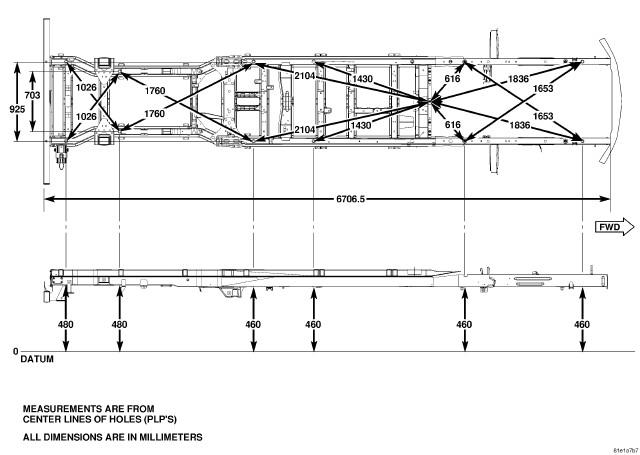

| 3500 CARGO ONLY 170 INCH WHEELBASE - EXTENDED | Fig 5 |

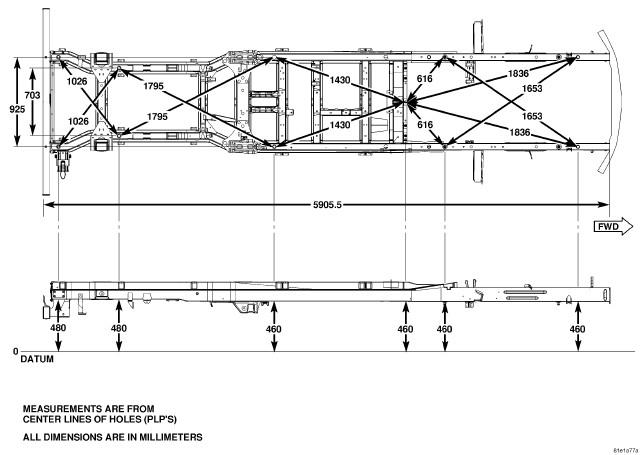

| 3500 CHASSIS - CAB 144 INCH WHEELBASE | Fig 6 |

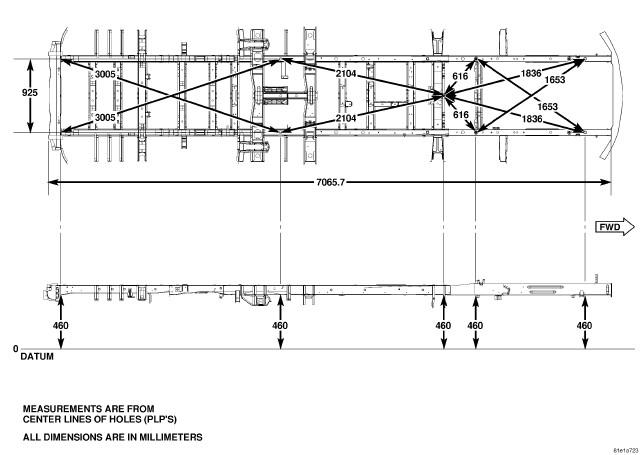

| 3500 CHASSIS - CAB 170 INCH WHEELBASE | Fig 7 |
