*No Response From SCM (Steering Control Module): Notes
WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

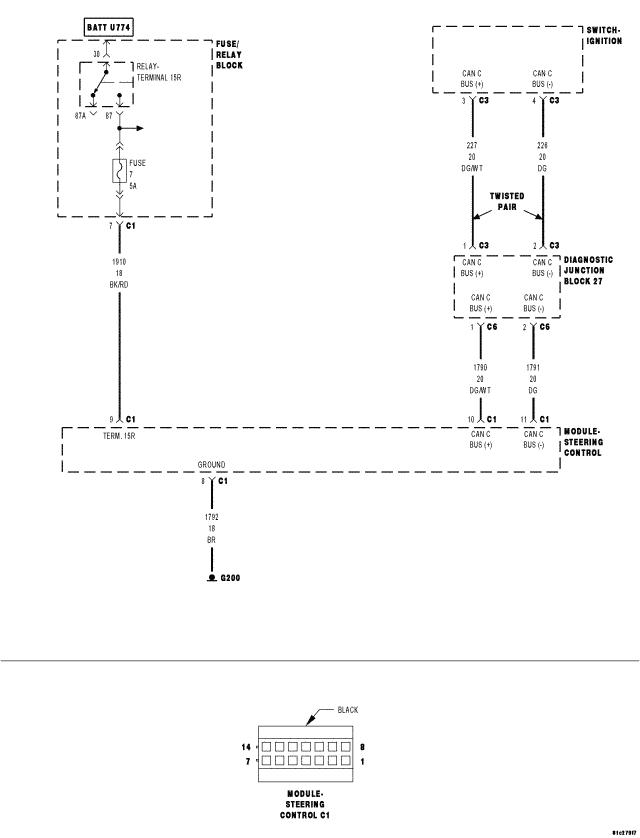

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.
| Possible Causes |
|---|
| FUSED IGNITION SWITCH CIRCUIT OPEN OR SHORTED |
| GROUND CIRCUIT OPEN |
| CAN C BUS (+) CIRCUIT OPEN |
| CAN C BUS (-) CIRCUIT OPEN |
| STEERING CONTROL MODULE |
