No Response From SCM (Steering Control Module): Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

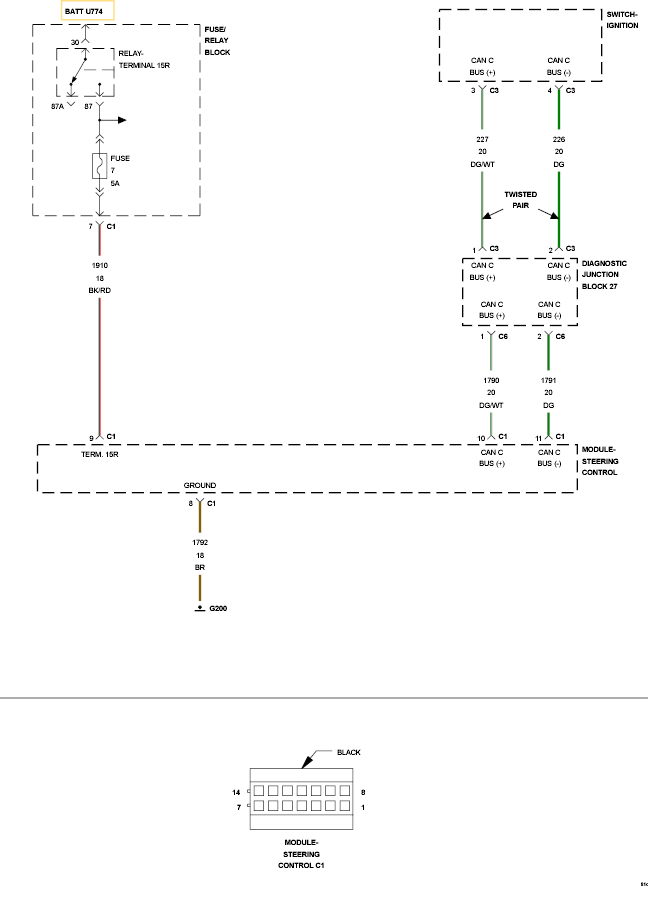

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| FUSED IGNITION SWITCH CIRCUIT OPEN OR SHORTED |
| GROUND CIRCUIT OPEN |
| CAN C BUS (+) CIRCUIT OPEN |
| CAN C BUS (-) CIRCUIT OPEN |
| STEERING CONTROL MODULE |
