Ambient Temperature Sensor Connector End View

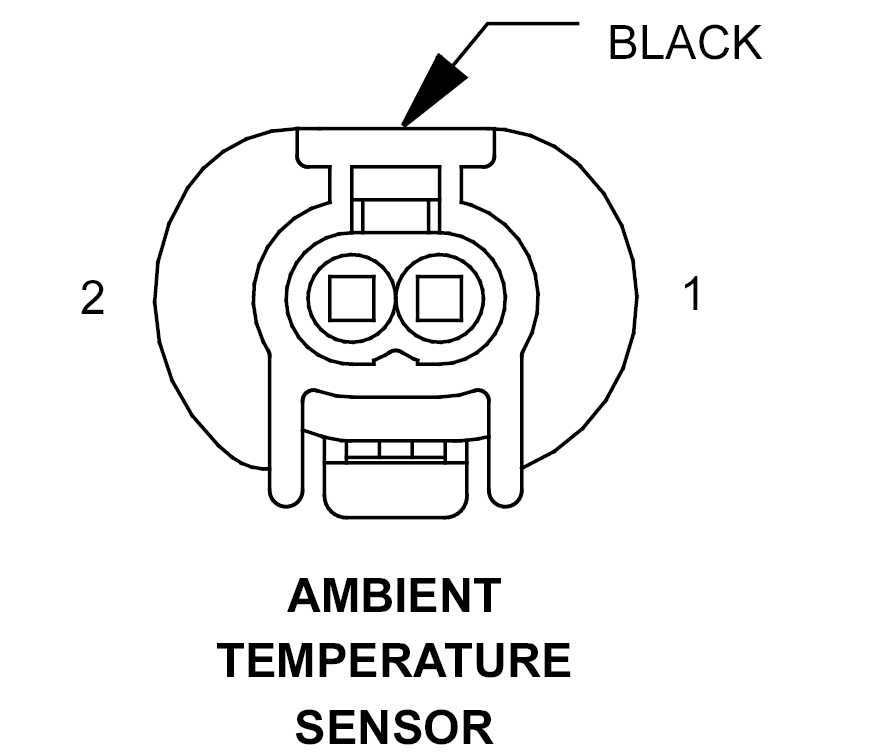

Ambient Temperature Sensor Connector End View
AMBIENT TEMPERATURE SENSOR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20DG
AMBIENT TEMPERATURE SENSOR SIGNAL
2
20BR
SENSOR GROUND
Courtesy of CHRYSLER CORP.
