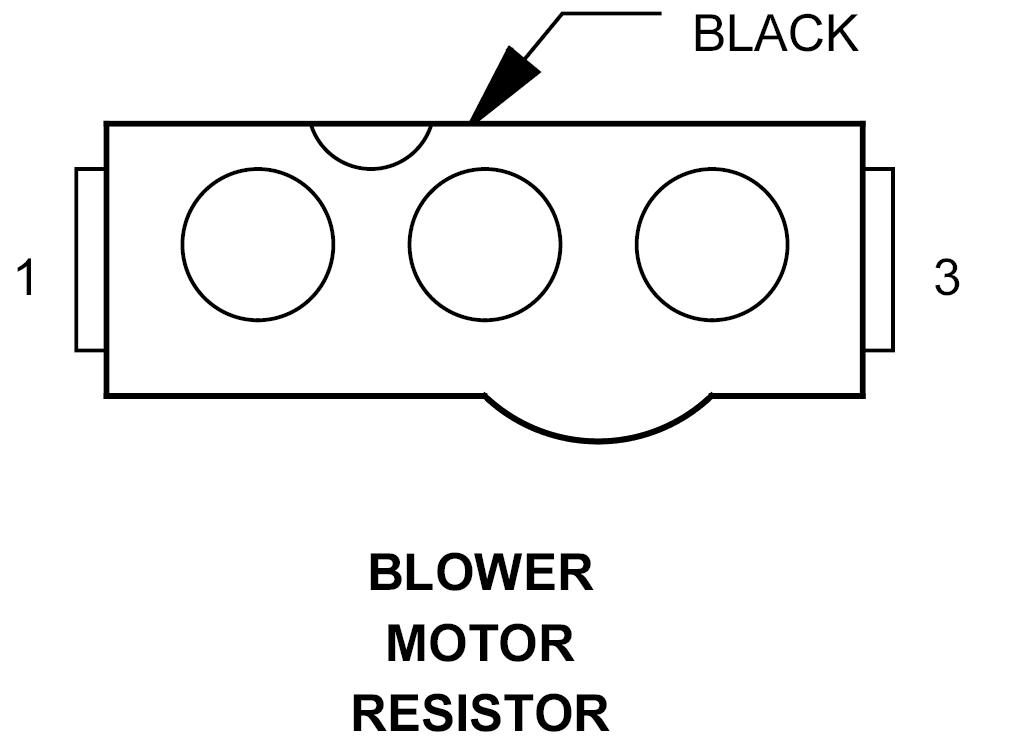

Blower Motor Resistor Connector End View

BLOWER MOTOR RESISTOR - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	14BR	BLOWER MOTOR GROUND
2	20WT/PK	BLOWER MOTOR CONTROL
3	14RD	FUSED B(+)
