Brake Fluid Level Switch Connector End View

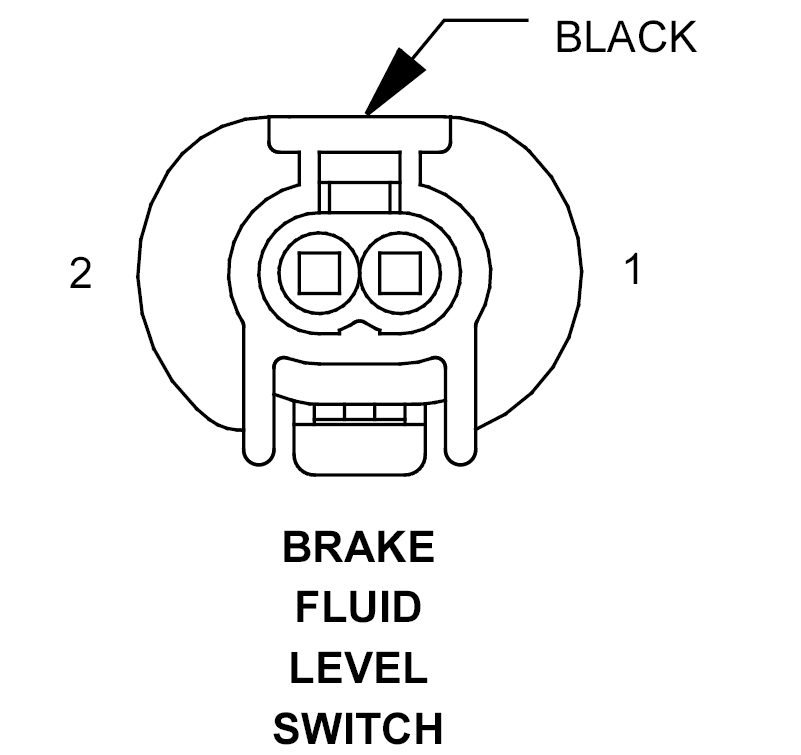

BRAKE FLUID LEVEL SWITCH - BLACK 2-WAY

GZH780024Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20BR/WT BRAKE FLUID LEVEL SWITCH SENSE
