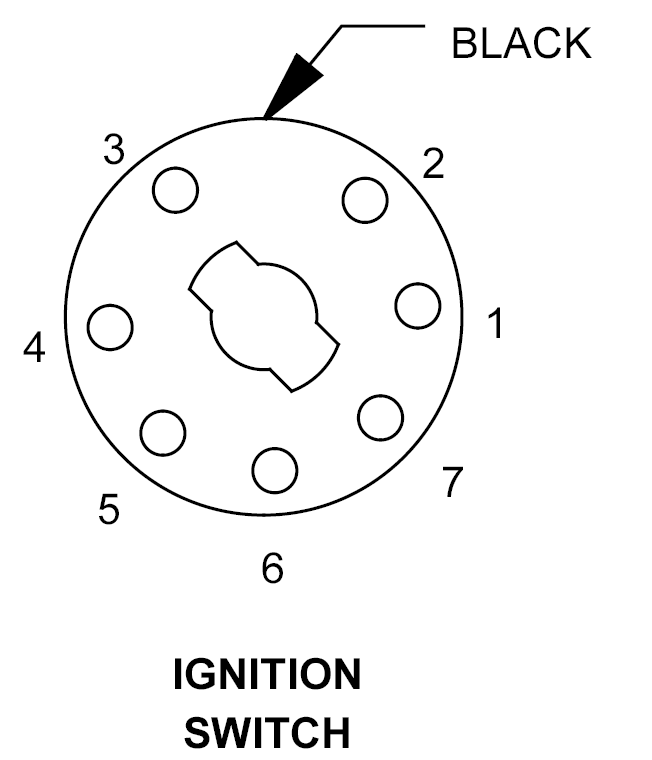

Ignition Switch Connector End View

IGNITION SWITCH - BLACK 7-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	12PK/RD	FUSED IGNITION SWITCH OUTPUT
2	18DG/WT	FUSED IGNITION SWITCH OUTPUT
3	12PK/YL	FUSED IGNITION SWITCH OUTPUT
4	16VT	FUSED IGNITION SWITCH OUTPUT
5	12RD	FUSED B(+)
6	20PK/DG	FUSED IGNITION SWITCH OUTPUT
7	12RD	FUSED B(+)
