Left Knock Sensor Connector End View

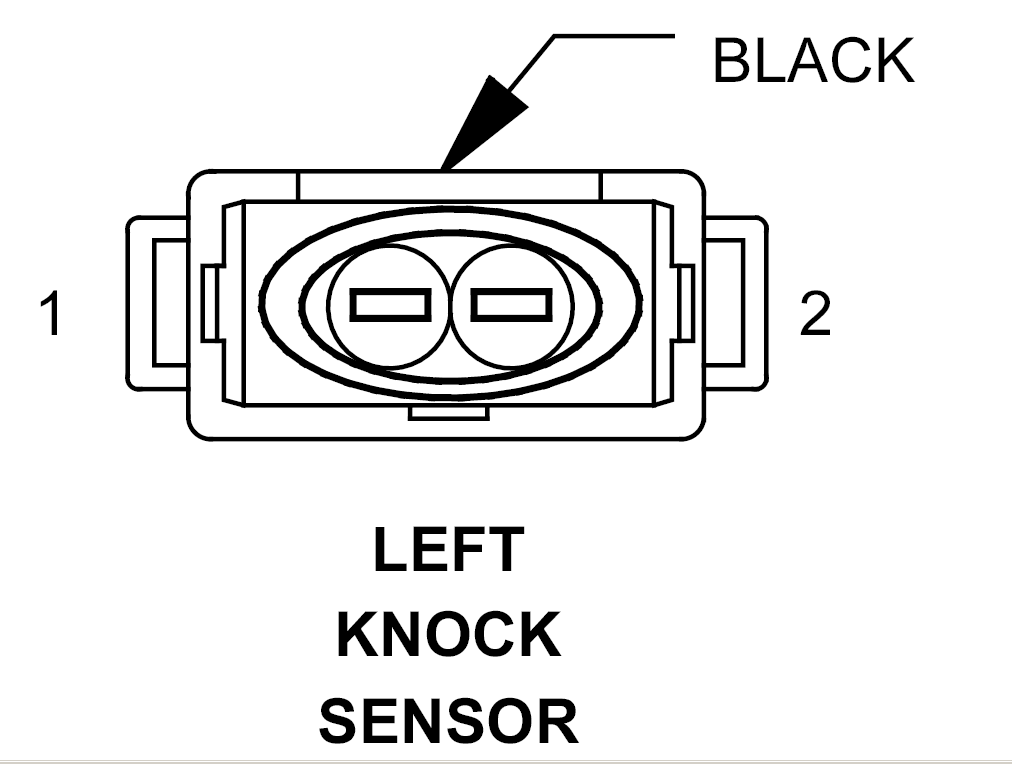

LEFT KNOCK SENSOR - BLACK 2-WAY

GZH780150Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BK SENSOR GROUND
2 20YL LEFT KNOCK SENSOR SIGNAL
