Oil Sensor Connector End View

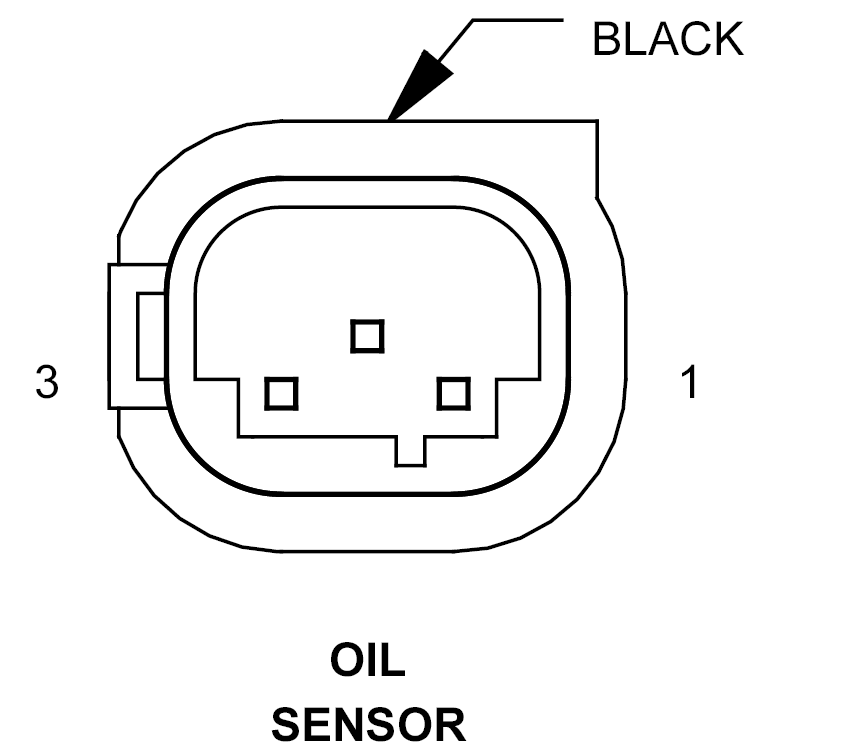

OIL SENSOR - BLACK 3-WAY

GZH780168Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20GY/BL OIL SENSOR SIGNAL
2 20BR/BK SENSOR GROUND
3 20RD/YL 5 VOLT SUPPLY
