Right Door Tweeter Connector End View
Right Door Tweeter Connector End View

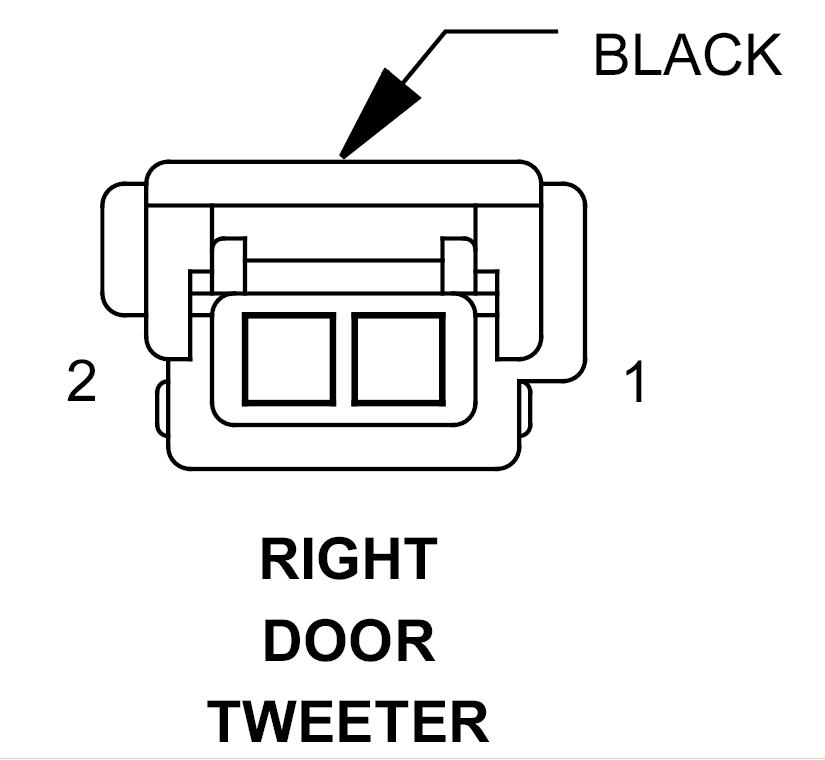

RIGHT DOOR TWEETER - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BR/DG
AMPLIFIED RIGHT DOOR SPEAKER (-)
2
18BK/BL
AMPLIFIED RIGHT DOOR SPEAKER (+)
Courtesy of CHRYSLER CORP.
