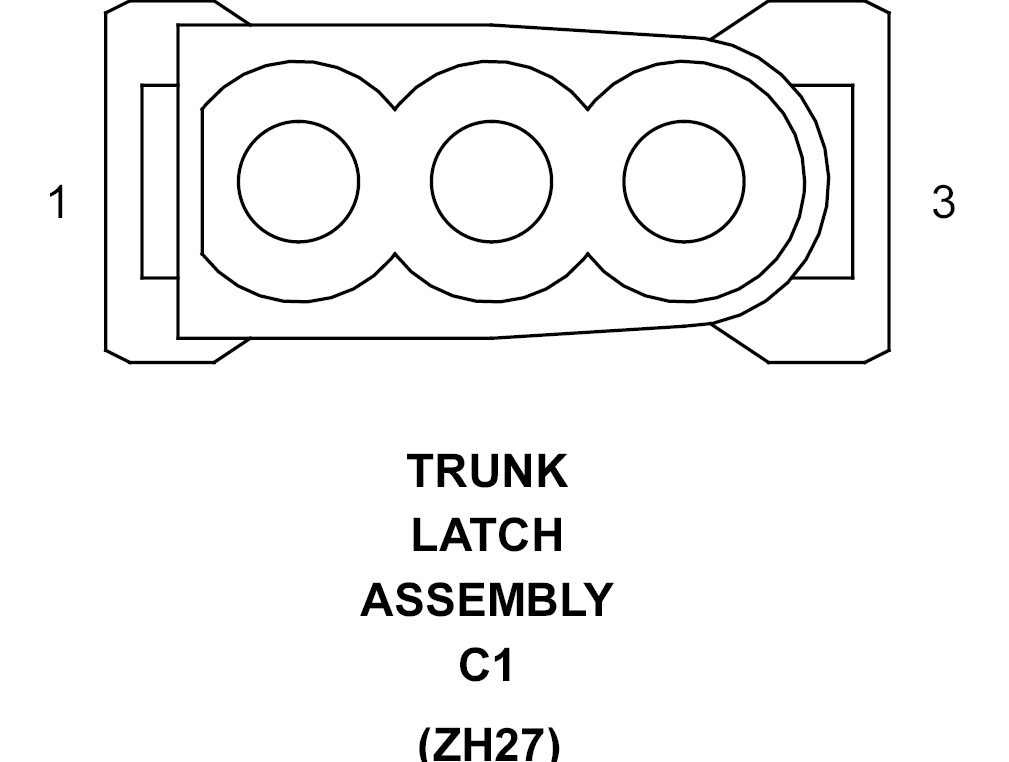

Trunk Latch Module (Roadster (Convertible)) Connector End View (C1)

TRUNK LATCH ASSEMBLY C1 - 3-WAY (ZH27)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR	GROUND
2	20BK/VT	TRUNK LATCH UNLOCKED SIGNAL
3	20BR/VT	TRUNK LATCH LOCKED SIGNAL
