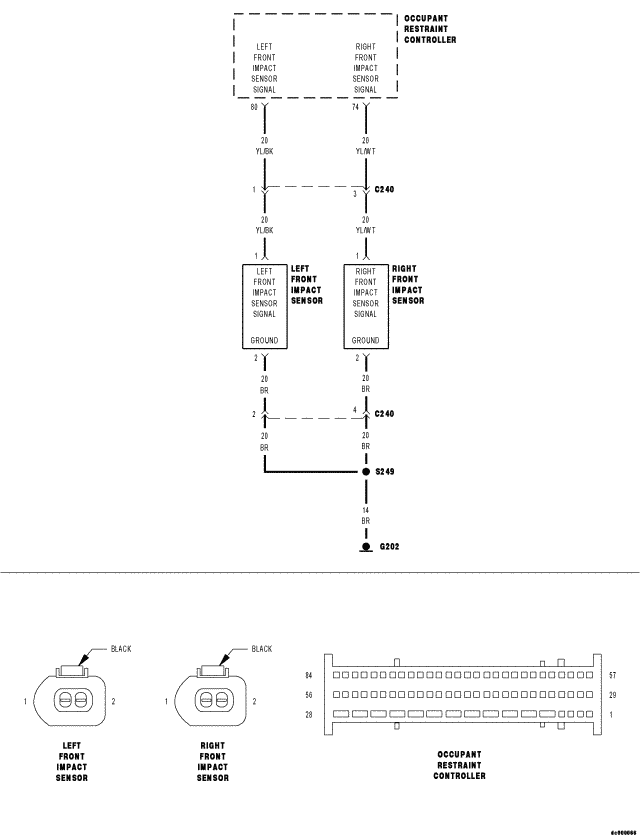

Home › Chrysler › 2007 › Crossfire Base, 2D Convertible › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1001 To B1073 › B1038|B1039|B103A|B103B|B103C|B103D-Right Front Impact Sensor › Circuit Schematic
