Totally Integrated Power Module
NOTE:

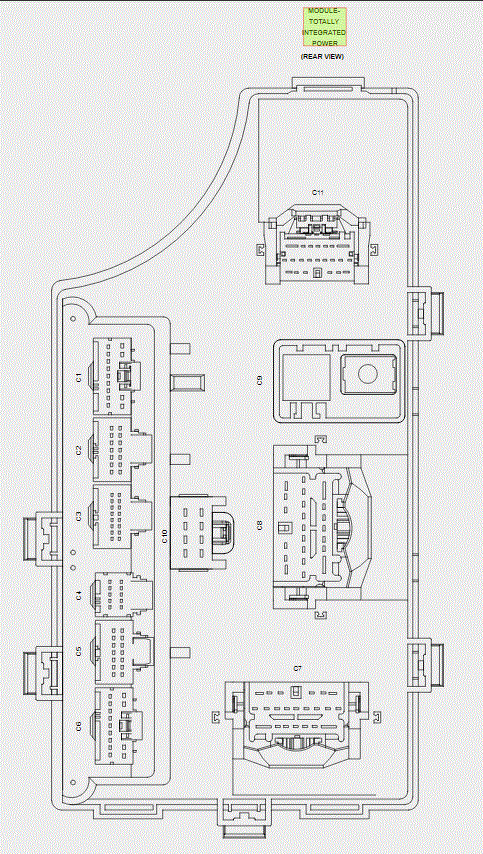

Totally integrated power module (TIPM) is located on left side of engine compartment behind battery. See Fig 1.
TOTALLY INTEGRATED POWER MODULE COMPONENTS
| FUSE NO. | AMPS | FUNCTION |
|---|---|---|
| 1 | 40A | Power Top Feed |
| 2 | 20A | AWD ECU Feed |
| 3 | 10A | CHMSL, Brake Switch Feed |
| 4 | 10A | Ignition Switch Feed |
| 5 | 20A | Trailer Tow |
| 6 | 10A | IOD Sw/Pwr Mir/Ocm Steering Cntrl Sdar/Hfm |
| 7 | 30A | IOD Sense 1 |
| 8 | 30A | IOD Sense 2 |
| 9 | 40A | Power Seats |
| 10 | 20A | CCN, Power Locks |
| 11 | 15A | Power Outlet |
| 12 | 20A | Ign Run/Acc Inverter |
| 13 | 20A | Pwr Run/Acc Outlet RR |
| 14 | 10A | IOD CCN/Interior Lighting |
| 15 | 50A | RAD Fan Relay Battery Feed |
| 16 | 15A | IGN Run/Acc Cigar Ltr/Sunroof |
| 17 | 10A | IOD Feed CVT Mod/Mod_Wcm |
| 18 | 40A | ASD Relay Contact PWR Feed |
| 19 | 20A | PWR Amp 1 & Amp 2 Feed |
| 20 | 15A | IOD Radio Feed |
| 21 | 10A | IOD Feed Inrus Mod/Siren |
| 22 | 10A | IGN RUN HVAC/Compass Sensor |
| 23 | 15A | ENG ASD Relay Feed 3 |
| 24 | 25A | Power Sunroof Feed |
| 25 | 10A | Heated Mirror |
| 26 | 15A | ENG ASD Relay Feed 2 |
| 27 | 10A | ING RUN Only ORC Feed |
| 28 | 10A | IGN RUN ORC/OCM Feed |
| 29 | - | - |
| 30 | 20A | Heated Seats |
| 31 | 10A | Headlamp Washer Relay Control |
| 32 | 30A | ENG ASD Control Feed 1 |
| 33 | 10A | ABS MOD/J1962 Conn/PCM |
| 34 | 30A | ABS Valve Feed |
| 35 | 40A | ABS Pump Feed |
| 36 | 30A | Headlamp Washer Controlff |
| 37 | - | - |
