Inlet Air Temperature Sensor

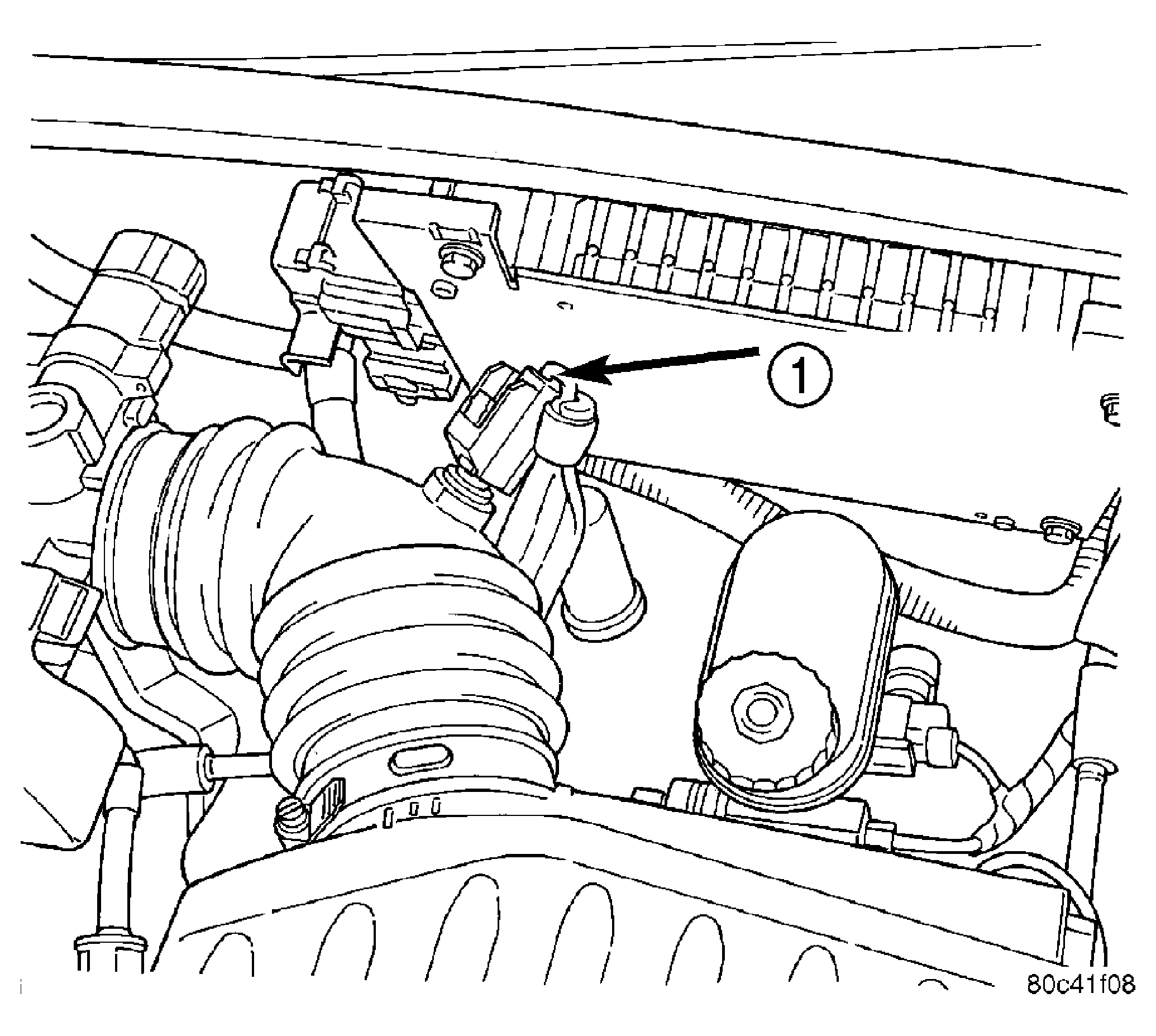

Fig 1: Inlet Air Temperature Sensor

Courtesy of CHRYSLER LLC

The sensors is in the air inlet tube (1).

1. Install sensor.
2. Attach electrical connector to sensor.
3. Connect the negative battery cable.
4. Install the air cleaner lid.
