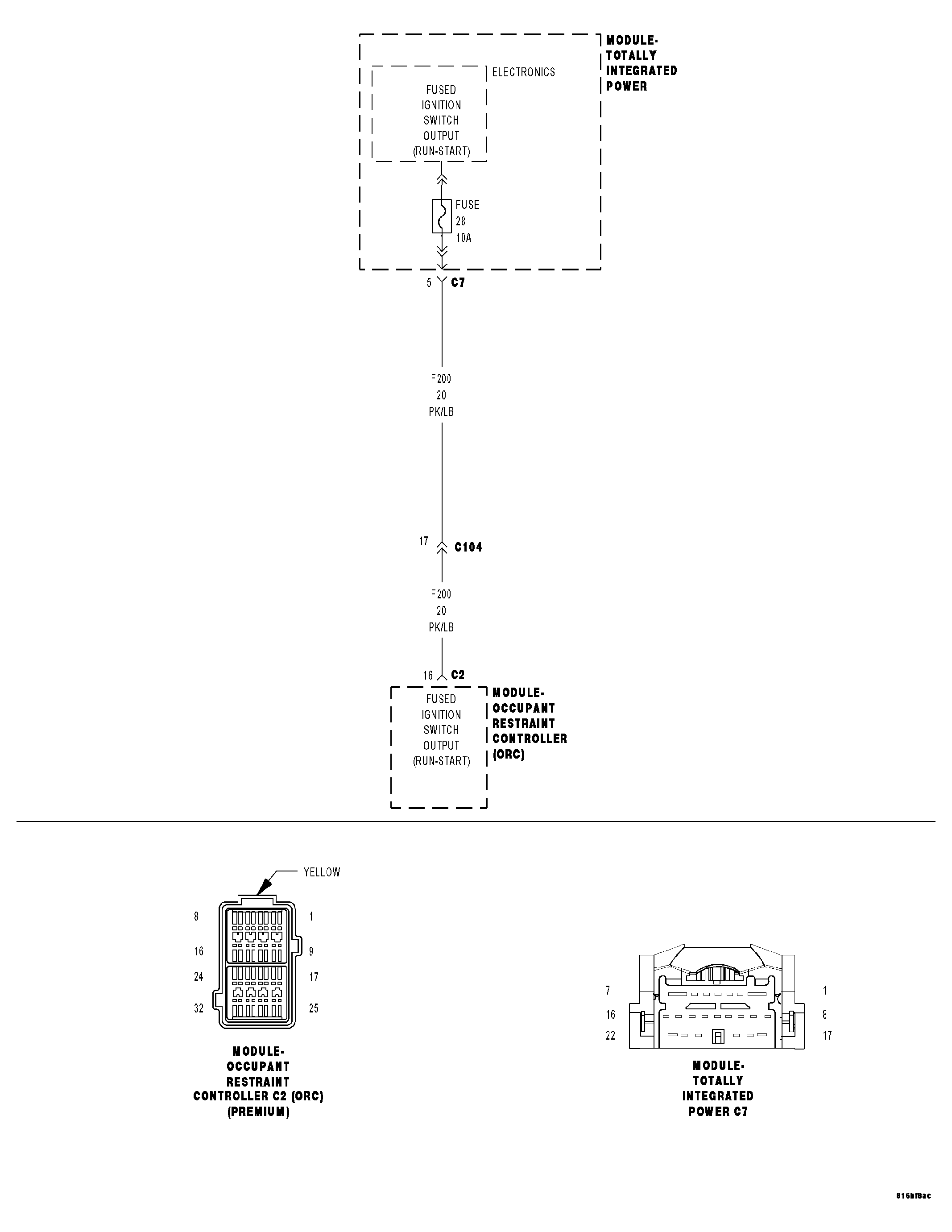

Home › Chrysler › 2007 › PT Cruiser Base, 2D Convertible, Automatic › Repair and Diagnosis › Engine Performance › Ignition System › Ignition System - Electrical Diagnostics › Ignition System - Electrical Diagnostics › DTC Troubleshooting › B2105-Ignition Run/Start Control Circuit High › Circuit Schematic
