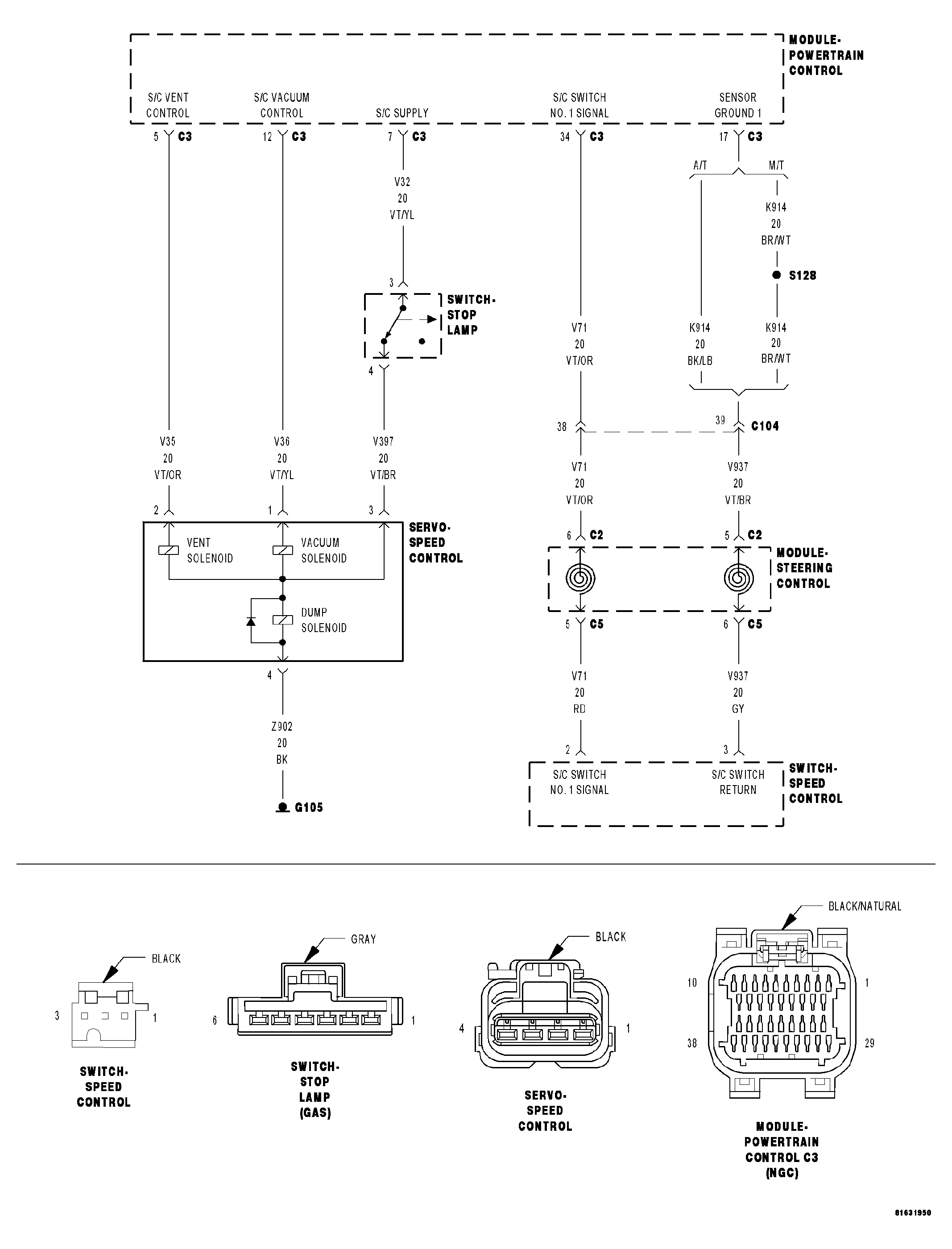

Home › Chrysler › 2007 › PT Cruiser Base, 2D Convertible, Automatic › Repair and Diagnosis › Engine Performance › System › DTCS P050D To P0688 › P0594-Speed Control Servo Power Circuit › Circuit Schematic
