Circuit Schematic

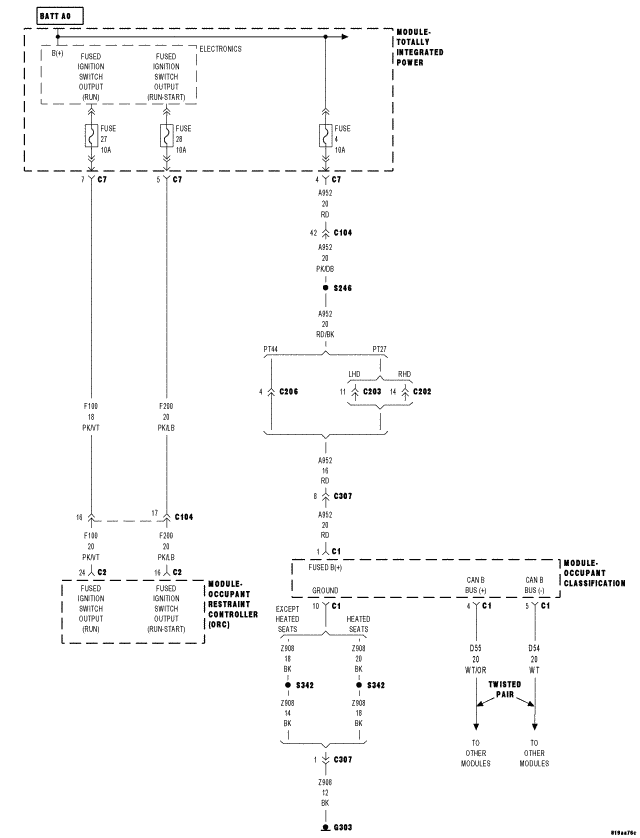

Fig 1: Occupant Classification Module (OCM ) Restraint Controller Circuit schematic
GC0058395Courtesy of CHRYSLER LLC
