Ignition Switch

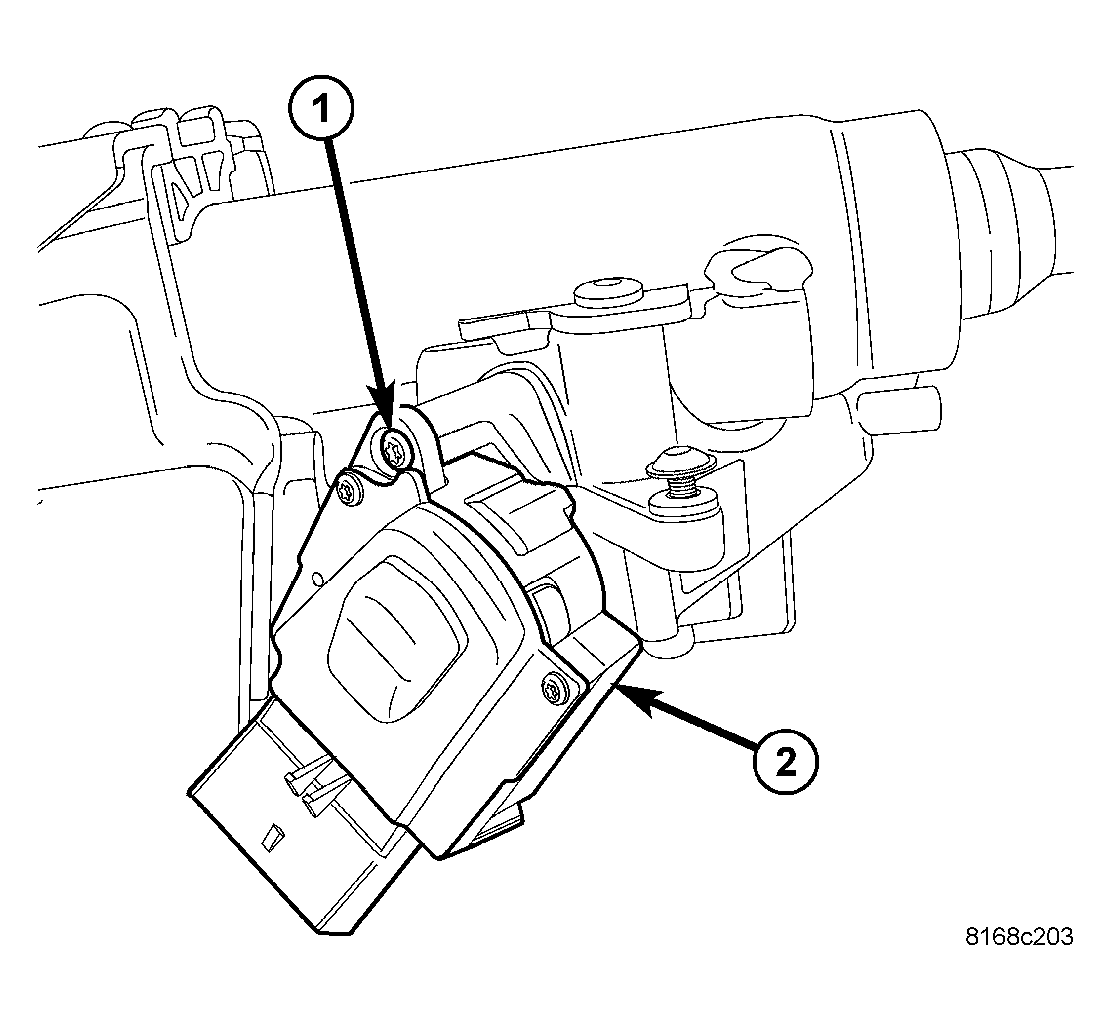

Fig 1: View Of Ignition Switch Mounting Screw
GC0042957Courtesy of CHRYSLER LLC
NOTE: Lock cylinder housing removed from column.
  1. Remove the ignition switch (2) mounting screw (1).

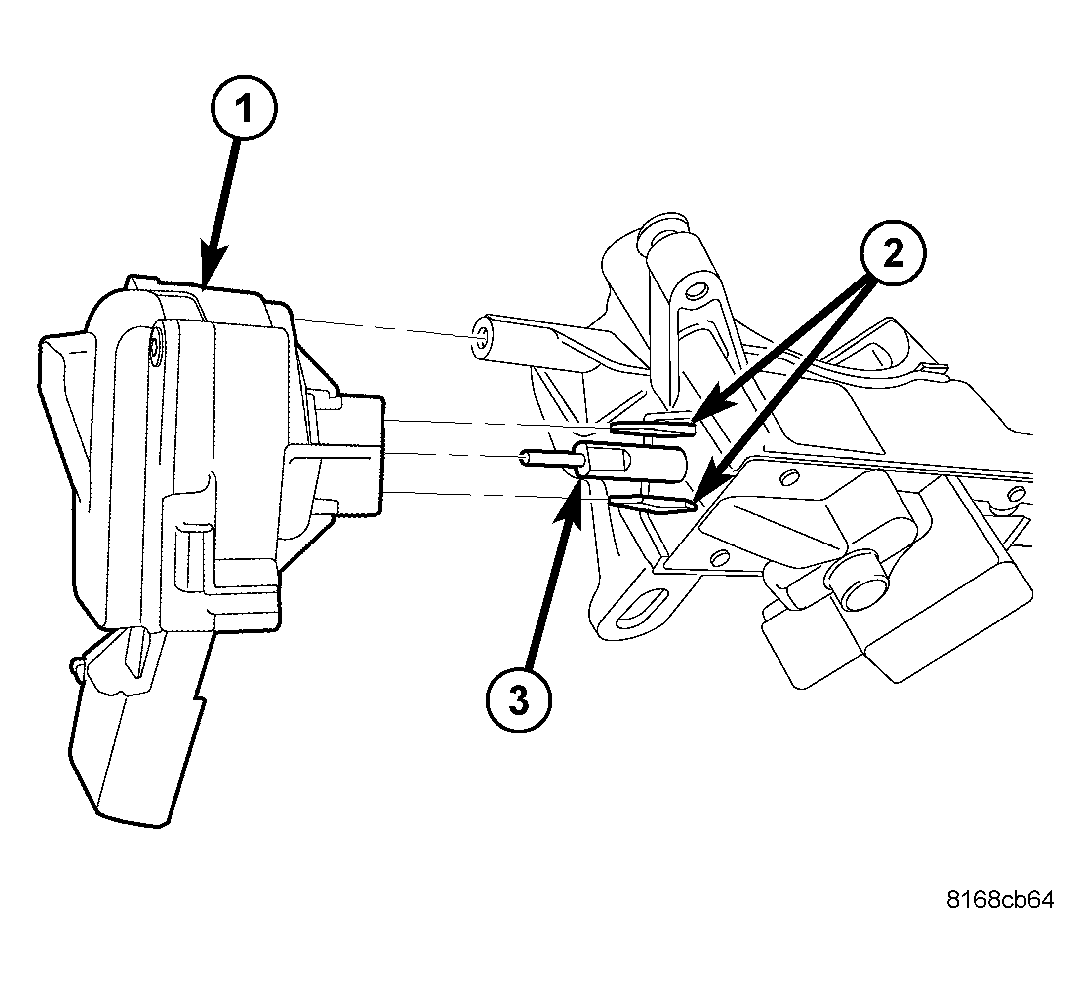

    Fig 2: Removing/Installing Ignition Switch
    GC0042958Courtesy of CHRYSLER LLC
  2. Pull the switch (1) straight out and off the retaining tabs (2) located on the lock cylinder housing.
