Description-Gas Engine: Turbo

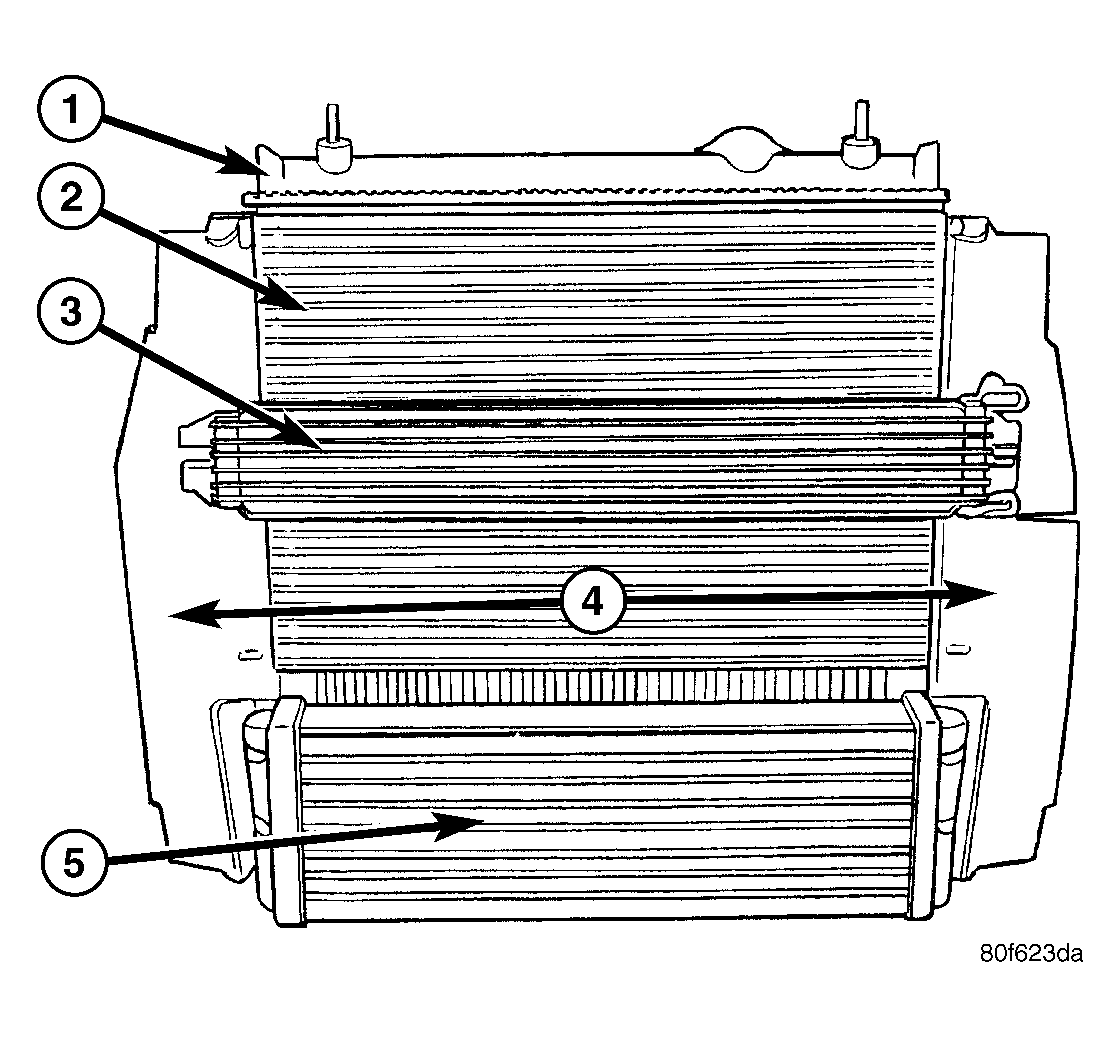

Fig 1: Cooling Module - 2.4L Turbo

Courtesy of CHRYSLER LLC

1 - RADIATOR

2 - A/C CONDENSER

3 - AUTOMATIC TRANSMISSION OIL COOLER

4 - AIR SEALS

5 - CHARGE AIR COOLER

The cooling system consists of an engine cooling module, thermostat, coolant recovery/reserve system, coolant, and a water pump. The engine cooling module consists of a radiator (1), electric fan assembly, transmission oil cooler (3), charge air cooler (5), hoses, clamps, air conditioning condenser (2) and transmission oil lines. Turbocharged equipped vehicles utilize the radiator in-tank cooler for a power steering fluid cooler. See Fig 1.
