Description-Diesel Engine
Courtesy of CHRYSLER LLC

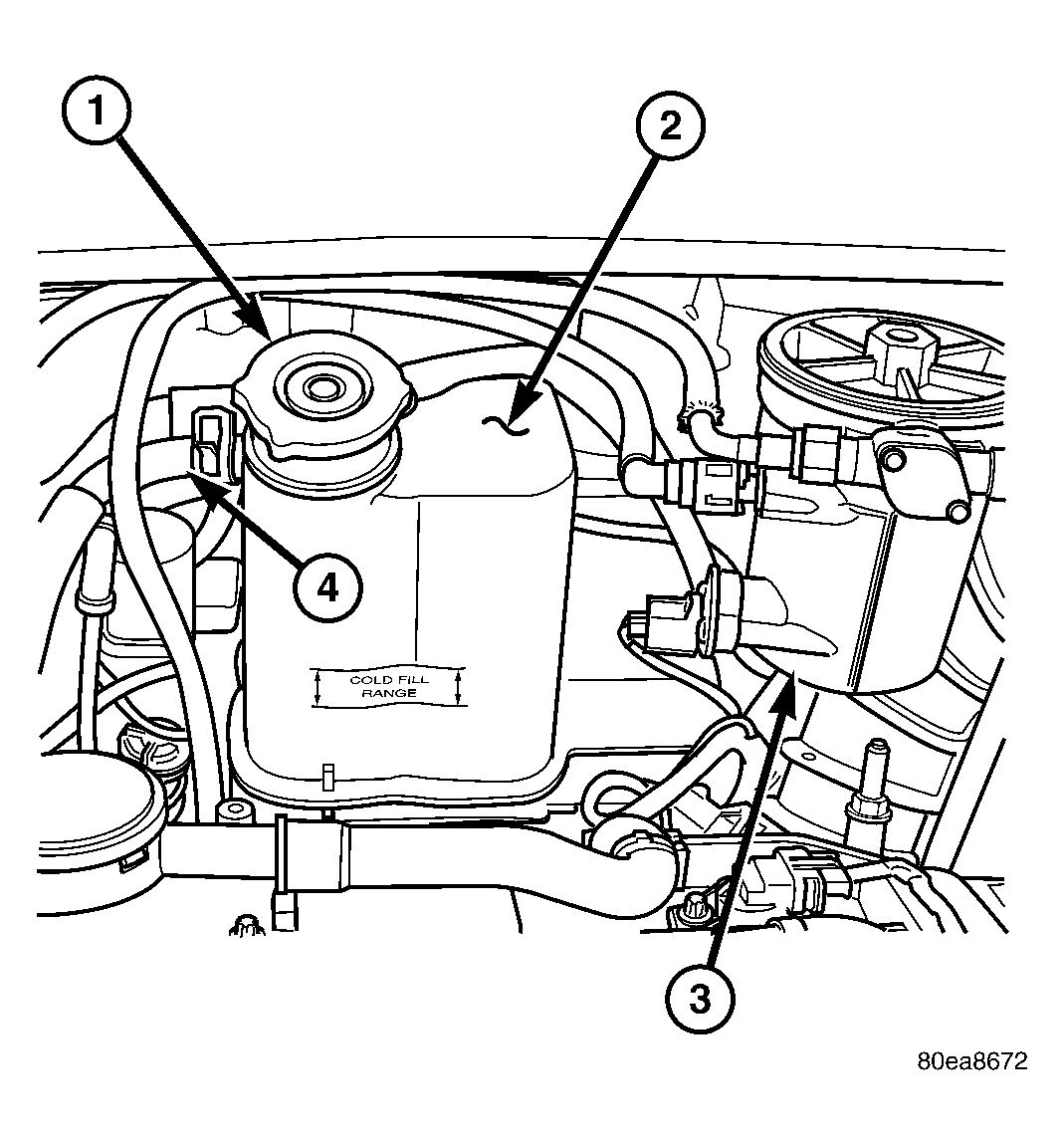

| 1 - COOLANT PRESSURE CAP |
| 2 - COOLANT RECOVERY PRESSURE CONTAINER |
| 3 - FUEL FILTER ASSEMBLY |
| 4 - COOLANT BYPASS HOSE |
The coolant recovery pressure container (2) is mounted in the rear of the engine compartment on the dash panel.
