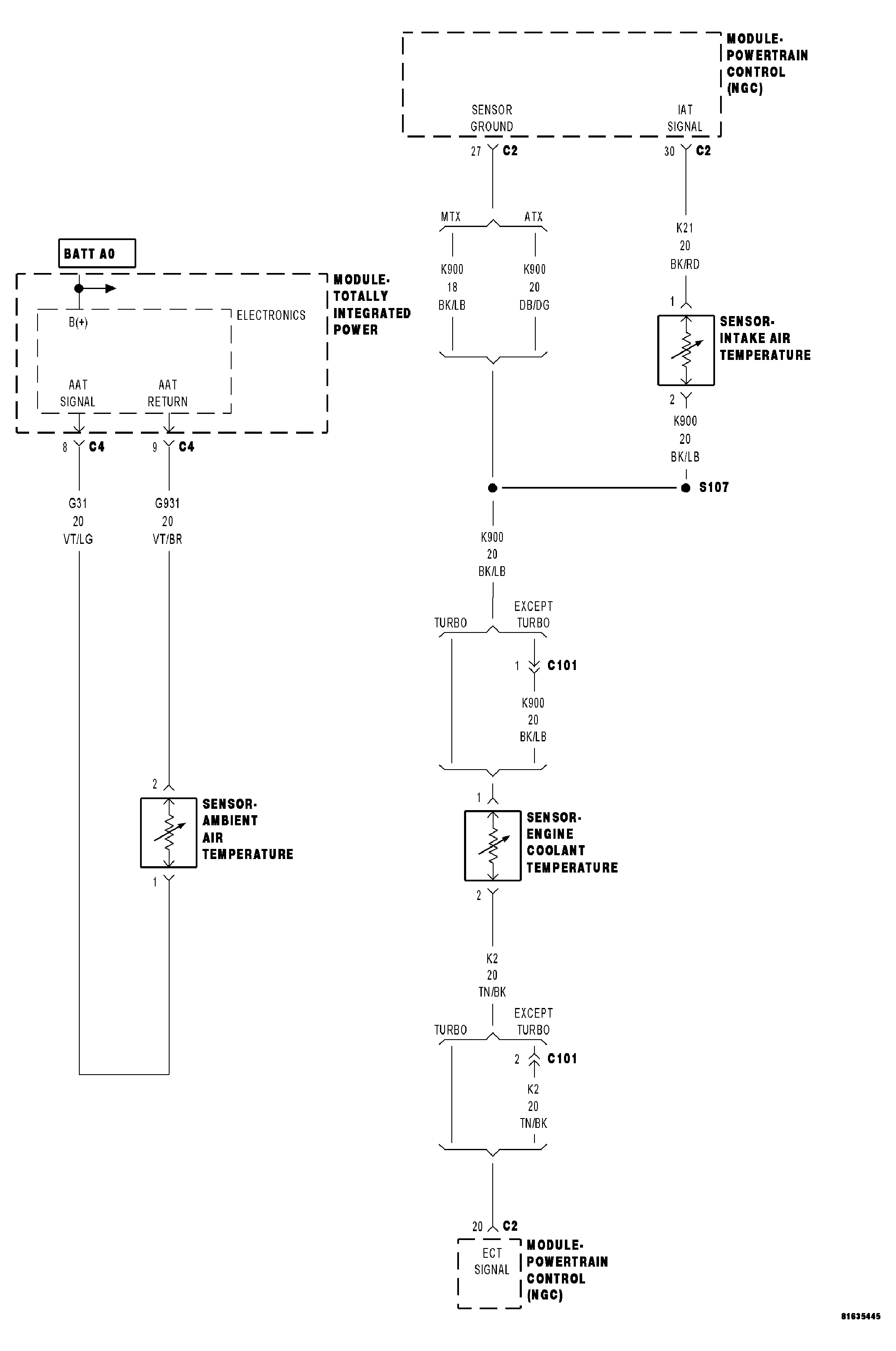

Home › Chrysler › 2007 › PT Cruiser Base, 2D Convertible, Standard › Repair and Diagnosis › Engine Performance › System › DTCS P0691 To P127F › P1115-General Temperature Rationality › Circuit Schematic
