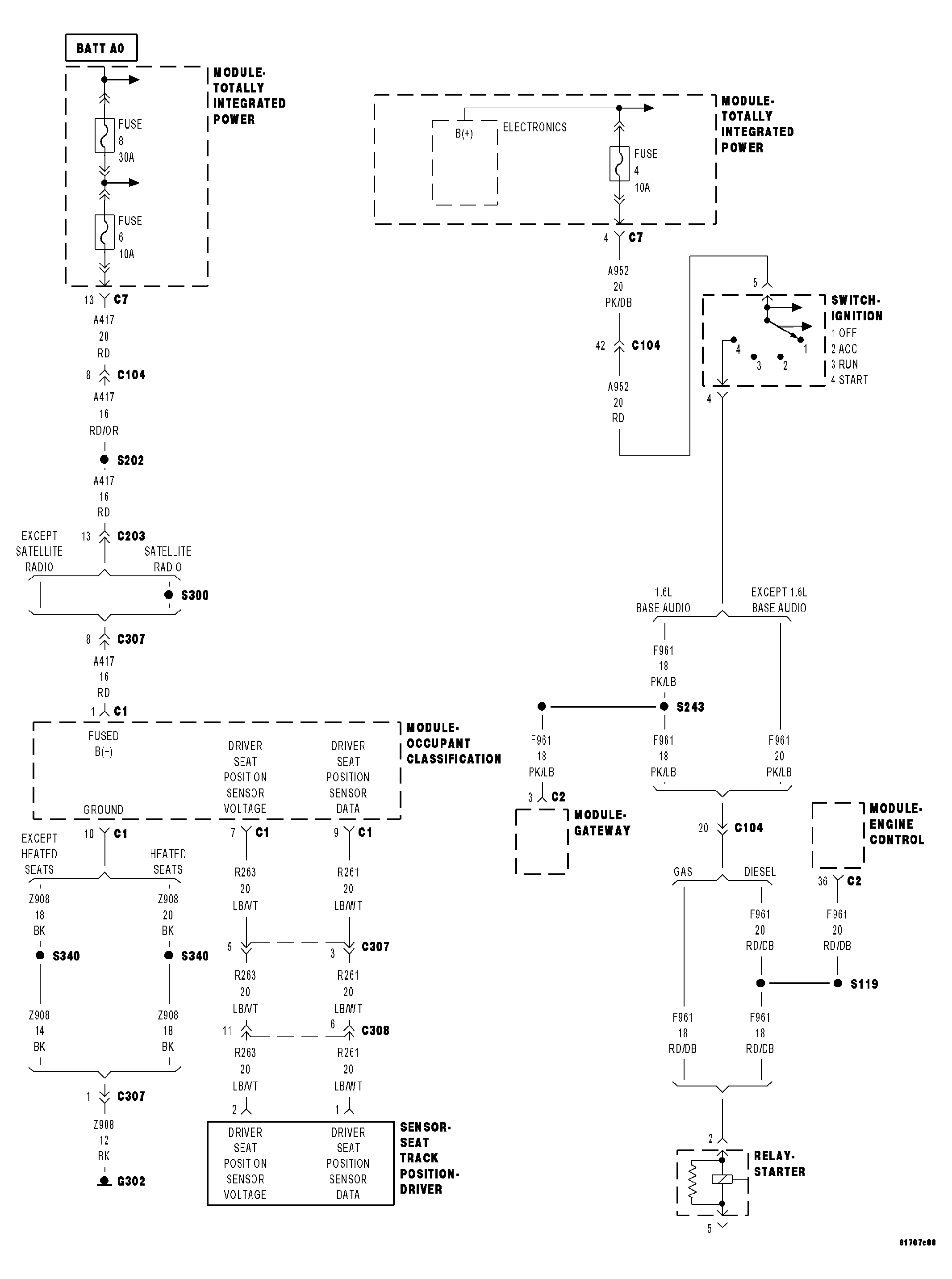

Home › Chrysler › 2007 › PT Cruiser Base, 2D Convertible, Standard › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1B83 To B2101 › B1B91-Driver Seat Track Position Sensor Configuration Mismatch › Circuit Schematic
