Engine Block Heater-Installation-4.0L

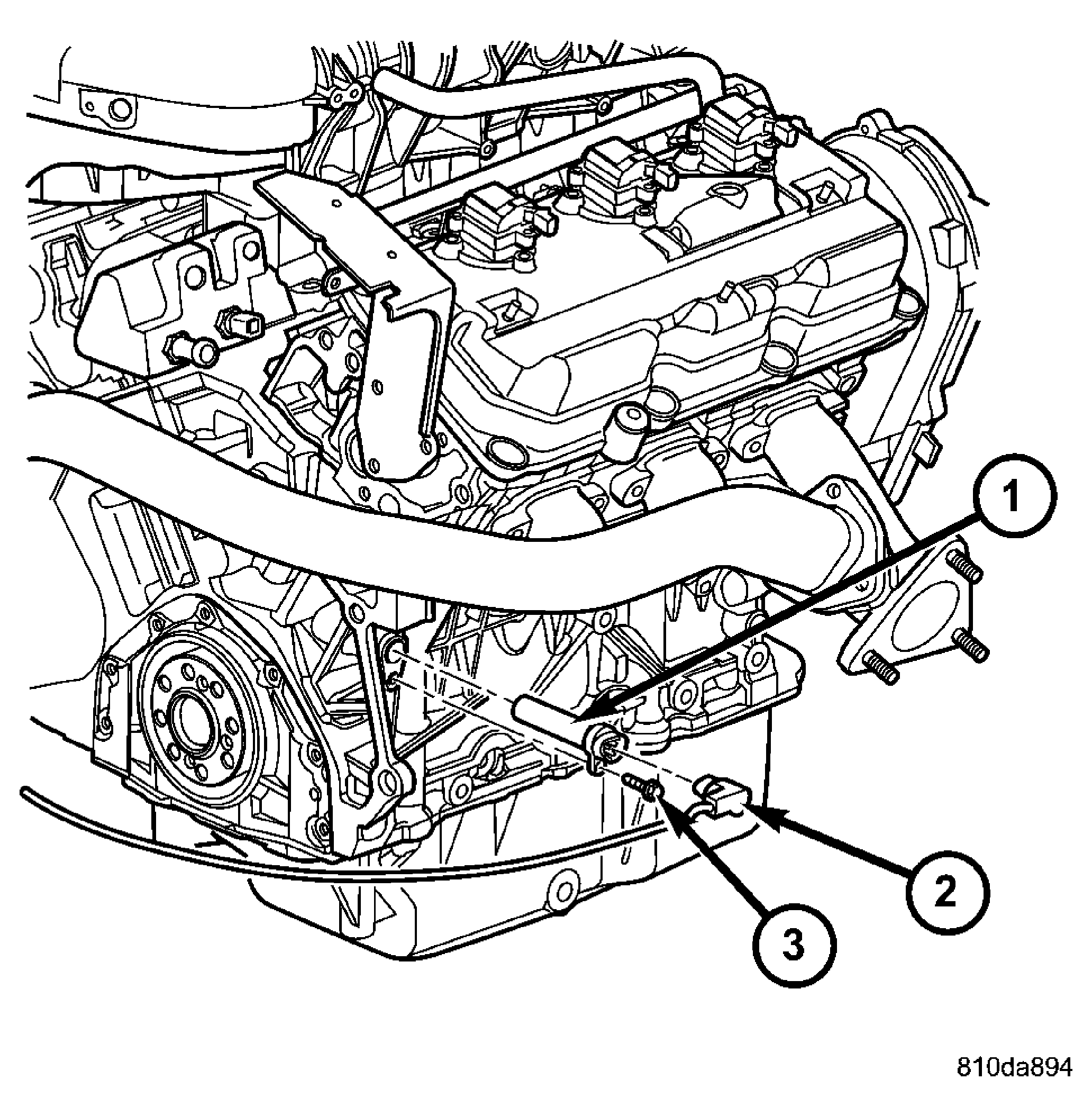

Fig 1: Block Heater And Electrical Connector 4.0L

Courtesy of CHRYSLER LLC

1 - BLOCK HEATER

2 - ELECTRICAL CONNECTOR

2 - BOLT

1. Clean block core hole and heater seat.
2. Insert heater assembly.
3. With heater seated, tighten screw securely to assure a positive seal.
4. Install power cord plug to heater.
