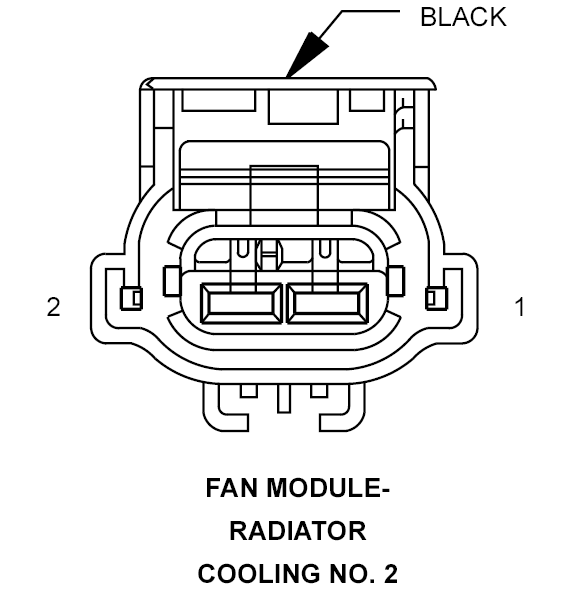

Fan Radiator Cooling Module 2 Connector End View

FAN MODULE-RADIATOR COOLING NO. 2 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	N23 12DB/DG	RADIATOR FAN RELAY OUTPUT
2	Z223 12BK/DG	GROUND
