Sensor-Intake Air Temperature - 4.0L

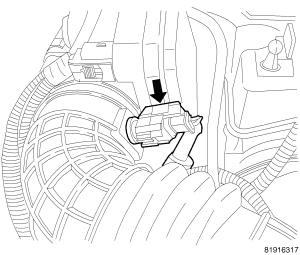

Fig 1: Inlet Sensor 4.0L

Courtesy of CHRYSLER LLC

1. Install sensor into inlet hose.
2. Connect and lock the electrical connector.
3. Connect the negative battery cable.
