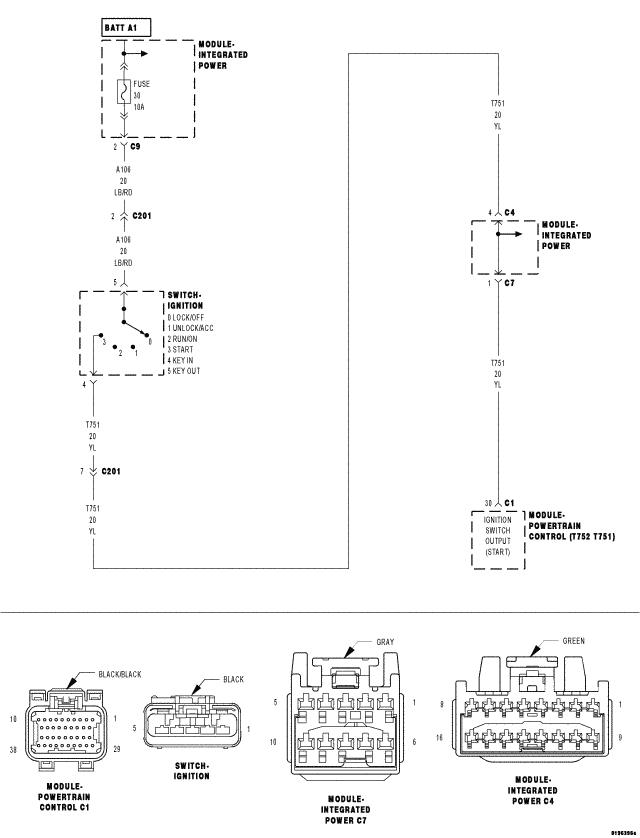

Home › Chrysler › 2007 › Pacifica Limited, AWD › Repair and Diagnosis › Engine Performance › Ignition System › Ignition Control - Electrical Diagnostics › Ignition Control-Electrical Diagnostics › DTC Troubleshooting › Ignition Start Input Mismatch-IPM › Circuit Schematic
