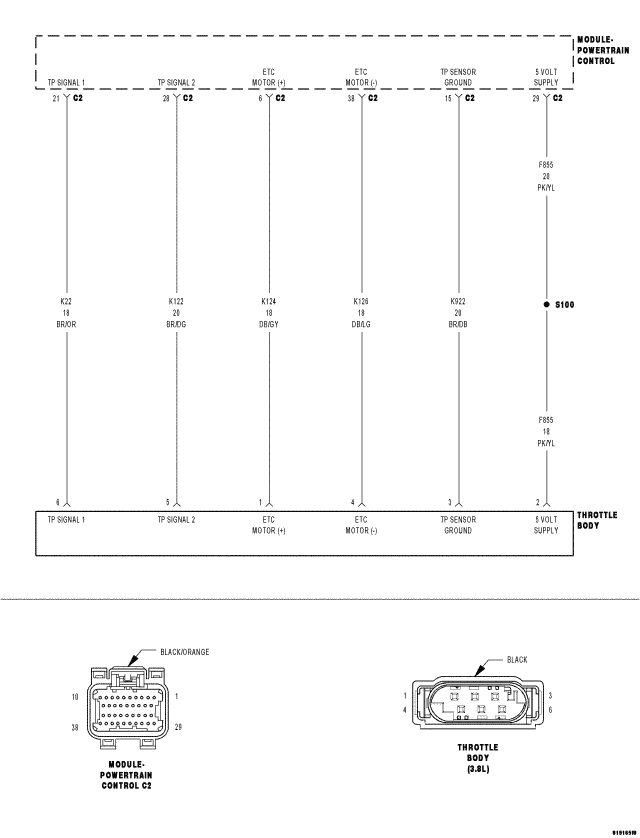

Home › Chrysler › 2007 › Pacifica Limited, FWD › Repair and Diagnosis › Engine Performance › System › DTCS P1654 To P2111 › P2111-Electronic Throttle Control System - Unable To Close - 3.8L › Circuit Schematic
