Ignition Control-Electrical Diagnostics
›
DTC Troubleshooting
›
Ignition Run/Start Input Mismatch-IPM
›
Circuit Schematic
Circuit Schematic

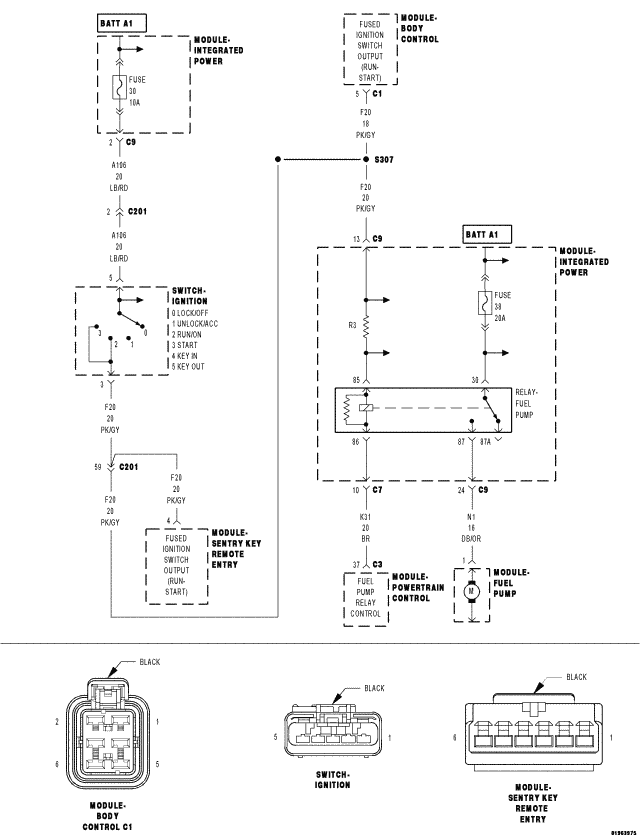

Fig 1: Ignition Run/Start Input Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
