Generator - 3.5L

Fig 1: Identifying Cable Connections

GC0058870

Courtesy of CHRYSLER LLC

Disconnect negative battery cable.
Remove engine cover.
Disconnect battery cable from generator.
Disconnect electrical connector from generator.

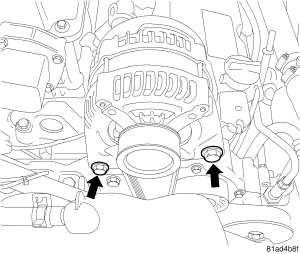

Fig 2: Identifying Generator Bolts
Courtesy of CHRYSLER LLC
Remove accessory drive belt, refer to REMOVAL .
Remove two mounting bolts.
Remove generator.
