Circuit Protection Devices
Circuit Protection Devices

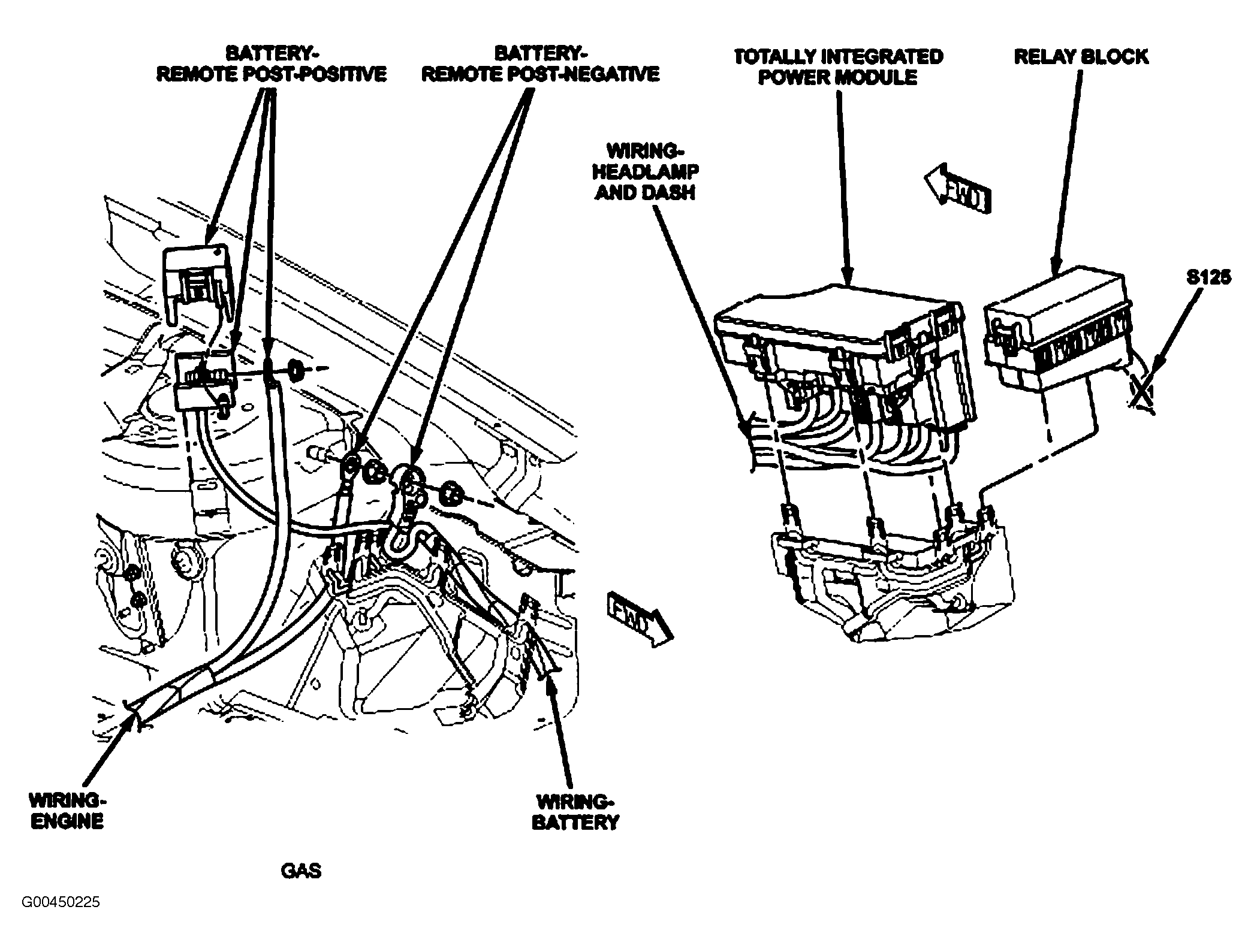

CIRCUIT PROTECTION DEVICES LOCATION
Component
Location
Relay Block
Left side of engine compartment. See
Figure
.
Totally Integrated Power Module
Left side of engine compartment. See
Figure
.
