Sensor-Oxygen 1/1 - 2.0/2.4L

Fig 1: Identifying Upstream Oxygen Sensor
GC0055485Courtesy of CHRYSLER LLC
  1. Remove the engine cover.
  2. Remove the negative battery cable.
  3. Disconnect electrical connector from O2 sensor.

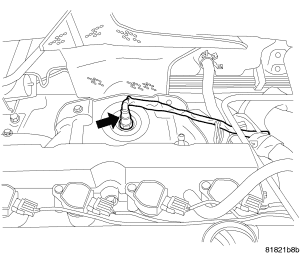

    Fig 2: Identifying Upstream Oxygen Sensor 2.4L
    GC0053052Courtesy of CHRYSLER LLC

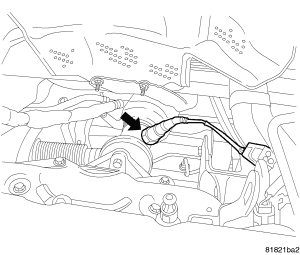

    Fig 3: Identifying Upstream Oxygen Sensor 1.8/2.0L
    GC0055486Courtesy of CHRYSLER LLC
  4. Remove sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent.
