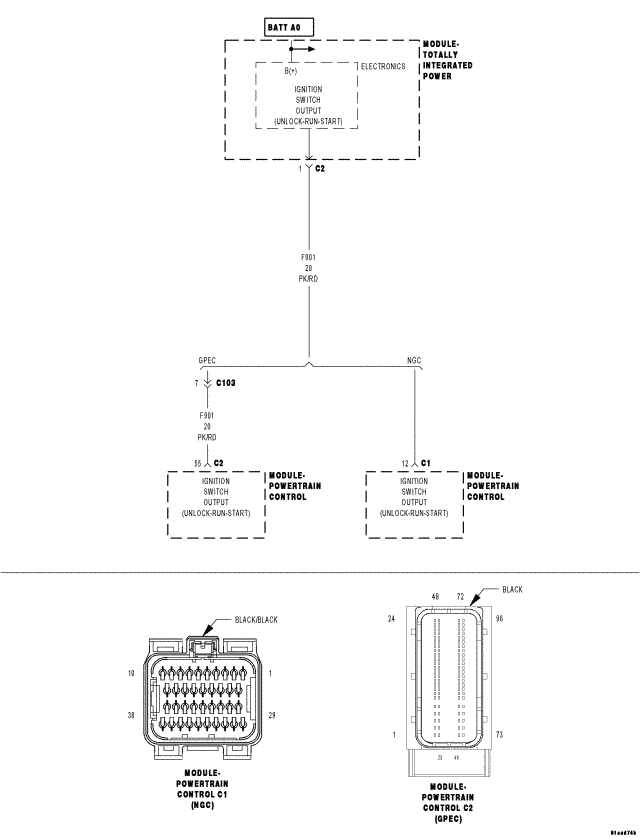

Home › Chrysler › 2007 › Sebring Base, 2.4 K › Repair and Diagnosis › Engine Performance › Ignition System › Ignition Control - Electrical Diagnostics › DTC Troubleshooting › B2184-Ignition Unlock Run/Start Control Circuit Low › Circuit Schematic
