Circuit Schematic

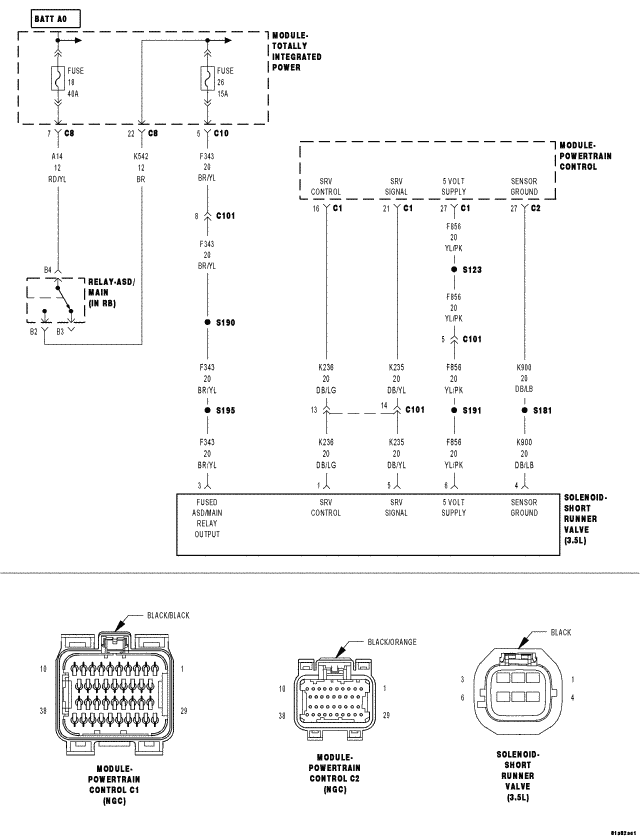

Fig 1: Short Runner Valve Solenoid Circuit Schematic
GC0059432Courtesy of CHRYSLER LLC
