DTCS P2307 To U1417 - GPEC
›
U0140-Lost Communication With Body Control Module
›
Circuit Schematic
Circuit Schematic

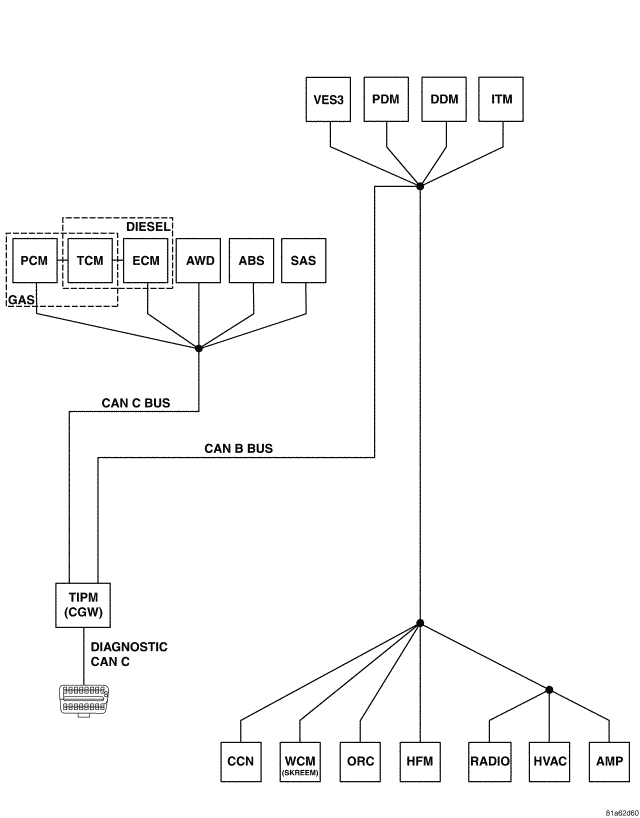

Fig 1: CAN B Bus Schematic
Courtesy of CHRYSLER LLC
