B212C-Ignition Run/Start Input Circuit Open: Notes

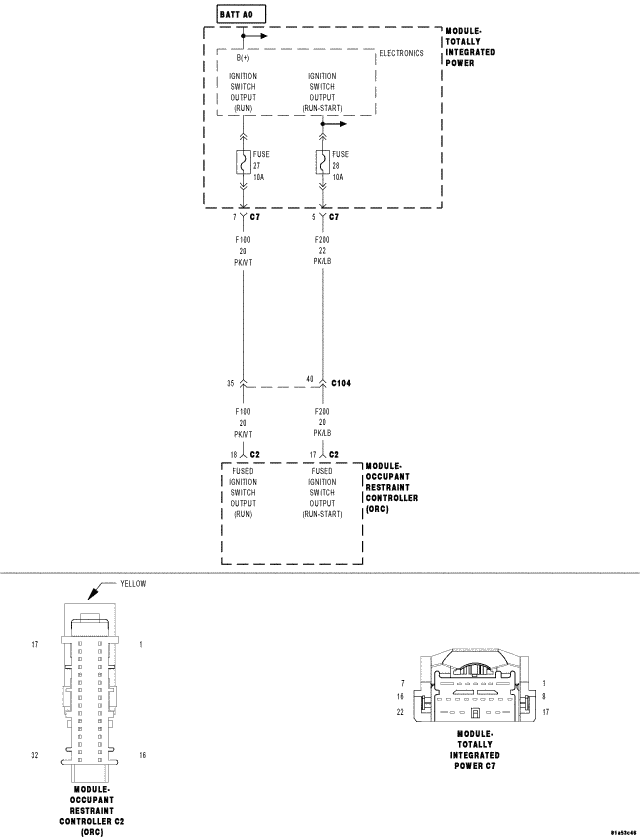

Fig 1: Occupant Restraint Controller (ORC) Power Supply
GC0059173Courtesy of CHRYSLER LLC
