Removal-Non-Pressure System

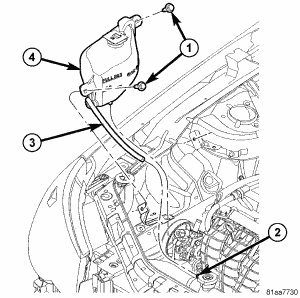

Fig 1: Identifying Coolant Recovery Container - 2.0/2.4L
GC0058753Courtesy of CHRYSLER LLC
1 - BOLT
2 - RADIATOR NIPPLE
3 - HOSE
4 - COOLANT RECOVERY CONTAINER - NON-PRESSURE
  1. Disconnect the overflow hose (3) from radiator nipple (2).
  2. Remove coolant recovery container mounting bolts (1).
  3. Remove coolant recovery container (4).
