Engine Block Heater-Removal-2.0/2.4L

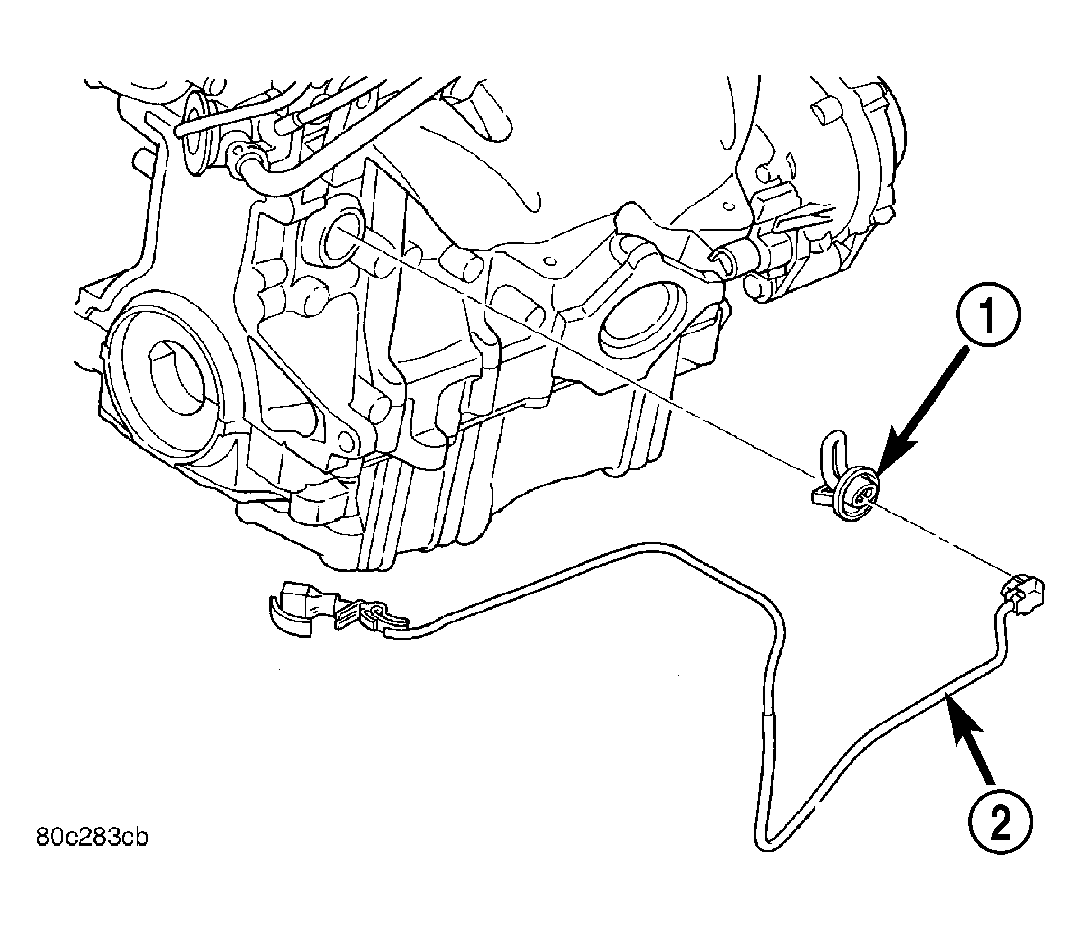

Fig 1: Identifying Engine Block Heater & Power Cord

Courtesy of CHRYSLER LLC

1 - BLOCK HEATER

2 - POWER CORD

1. Drain cooling system. See STANDARD PROCEDURE .
2. Raise vehicle on hoist.
3. Detach power cord plug from block heater.
4. Loosen screw in center of heater. Remove block heater assembly.
