Powertrain Control Module C2 Connector End View

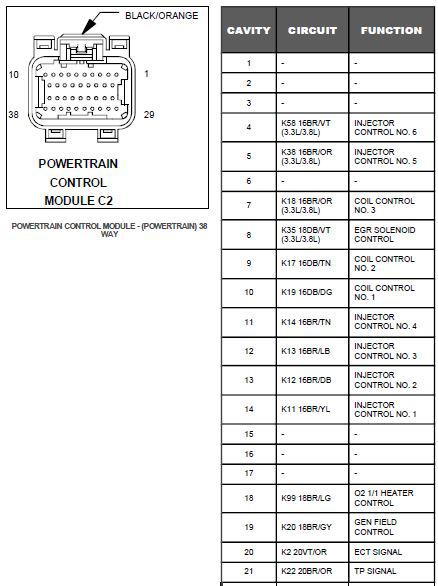

Fig 1: Powertrain Control Module C2 Connector End View & Legend (1 of 2)

G00575108

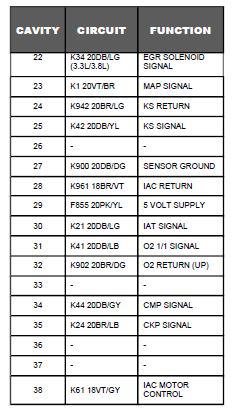

Fig 2: Powertrain Control Module C2 Connector End View & Legend (2 of 2)

G00575109
