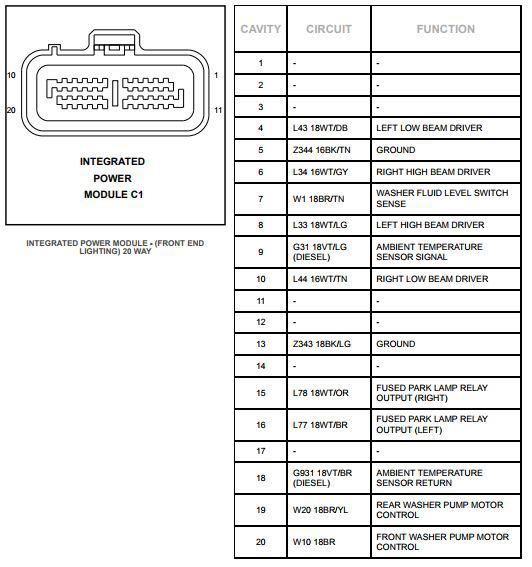

Integrated Power Module Connector End View C1
Integrated Power Module Connector End View C1
Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
