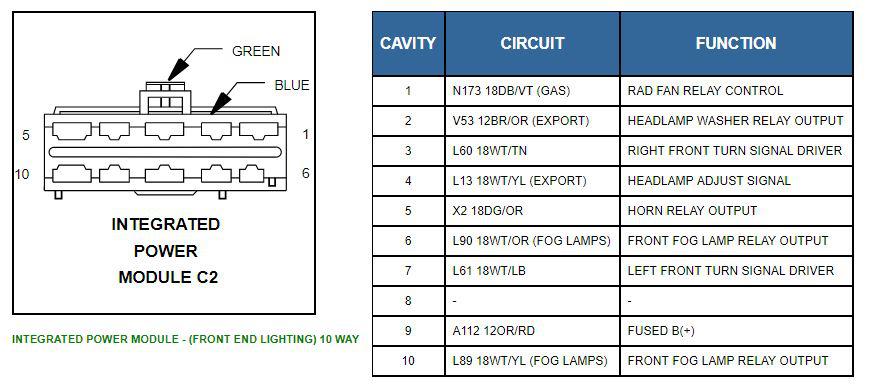

Integrated Power Module Connector End View C2
Integrated Power Module Connector End View C2
Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
