Integrated Power Module Connector End View C4
Integrated Power Module Connector End View C4

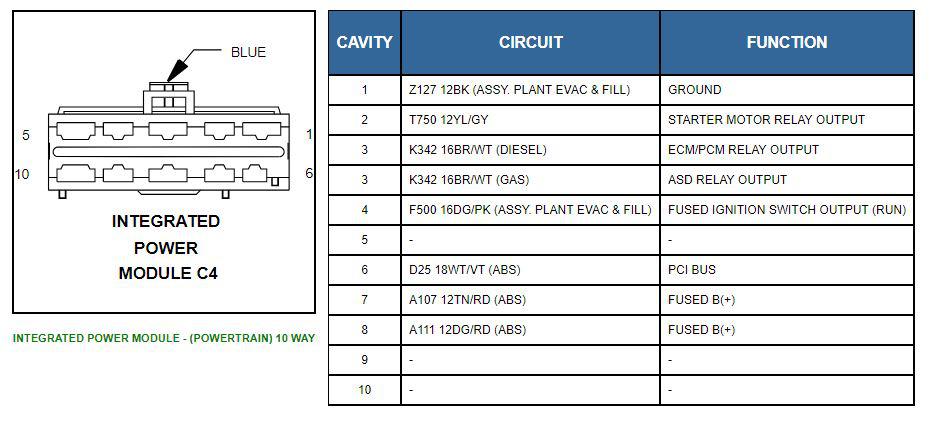

Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
