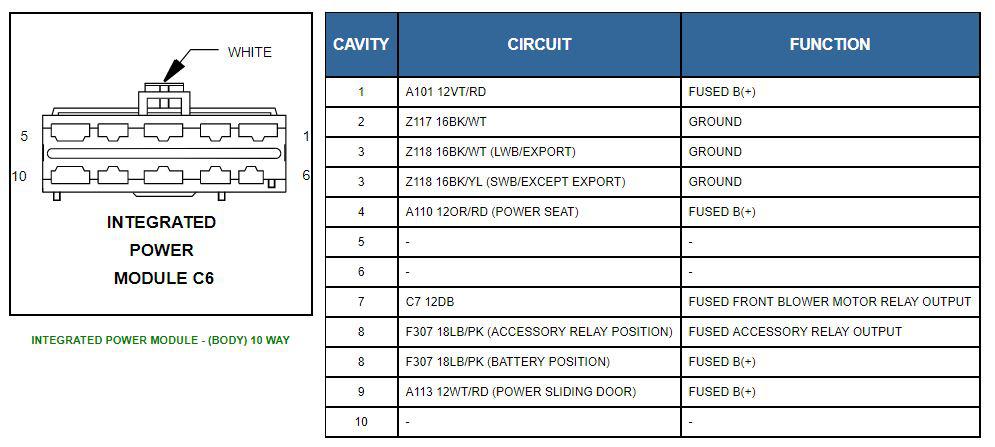

Integrated Power Module Connector End View C6
Integrated Power Module Connector End View C6
Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
