Integrated Power Module Connector End View C7
Integrated Power Module Connector End View C7

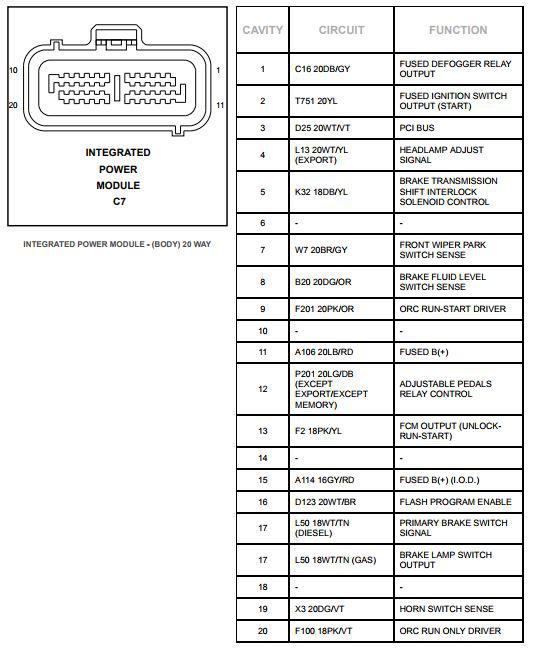

Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
