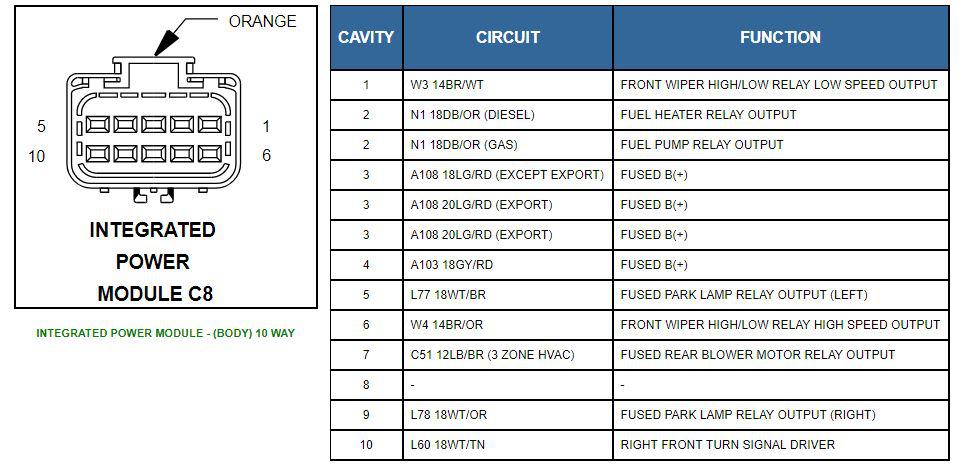

Integrated Power Module Connector End View C8
Integrated Power Module Connector End View C8
Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
